ACI A/TT1K-RS-4

Name: ACI A/TT1K-RS-4
Brand: ACI
SKU: CS6285531
Availability: OutOfStock

SKU: CS6285531MPN: A/TT1K-RS-4Alternate Part #: 118738

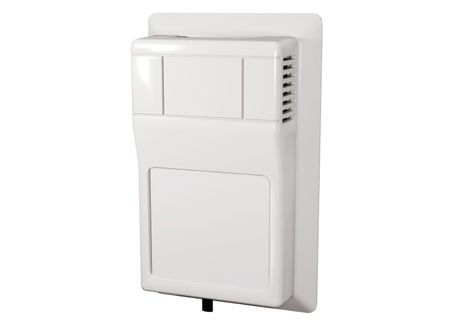

Transmitter w/ 1,000 Ohm RTD, Room (R) with Setpoint, 4-20mA Output

ACI A/100-2W-RS-A03-C5, A/10K-E1-RS-A03-C5, A/10KS-RS-A26-C5, A/10KS-RS-RJ6-A26-C5, A/1K-2W-RS-A03-C5, A/1K-2W-RS-A09-C5, A/1K-2W-RS-RJ6-A09-C5, A/20K-RS-232-A24-B4, A/20K-RS-A02-B4, A/20K-RS-A03-B4, A/20K-RS-A03-C5, A/20K-RS-A03-C6, A/20K-RS-A13-C5, A/20K-RS-A14-B4, A/20K-RS-A14-C5

Product Details

Transmitter w/ 1,000 Ohm RTD, Room (R) with Setpoint, 4-20mA Output

Product Configuration

Sensor	TT1K (XMTR, 1K Ω)
Display	None
Enclosure	Room (R)
Configuration	Room w/ Setpoint
Setpoint Options	None
Transmitter Output	4-20mA

Product Family Specifications

Input	4 to 20 mA Only (2-Wire Loop Powered)
Stability	+/- 0.03% after 1000 hours @ 300°C (572°F)
Sensor Type	Platinum RTD
Number Wires	Two
Sensor Curve	PTC (Positive Temperature Coefficient)
Output Signals	Current: 4-20 mA (2-Wire Loop Powered) Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Product Weight	“-R/RS/RO” Series: 0.17 lbs. (0.375 kg) “-RSO” Series: 0.21 lbs. (0.46 kg) “-R2/R2S/R2O” Series: 0.19 lbs. (0.42 kg) “-R2SO” Series: 0.23 lbs. (0.51 kg) All LCD Display Units: 0.174 lbs (0.079 kg)
Sensor Accuracy	+/- 0.06% Class A \| (Tolerance Formula: +/- °C \= (0.002 * \|t\|)) where \|t\| is the absolute valuse of temperature above or below 0°C in °C
Agency Approvals	RoHS2, WEEE
Lead Wire Colors	A/TTM100-R/R2: Brown/Brown A/TTM1K-R/R2: Black/Black
Product Dimensions	4.50” (114.3 mm) x 2.78” (70.6 mm) x 1.00” (25.4 mm)
Set Point Tolerance	+/- 10% \| 4-20 mA: 4 mA (Far Left) / 20 mA (Far Right)(DA-Direct Acting (Default)) +/- 10% \| 20 mA (Far Left) / 4 mA (Far Right)(RA-Reverse Acting (Optional))
LCD Display Accuracy	+/- 1.0% of Calibrated Temperature Span or +/- Whichever is Greater
Number Sensing Points	One
Connections \| Wire Size	Screw Terminal Blocks (Polarity Sensitive) \| 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance	(Terminal Voltage - 8.5 V) \| 0.020 A
Operating Humidity Range	5 to 95% RH non-condensing
Storage Temperature Range	Non-LCD:-40 to 65°C (-40 to 149°F) \| LCD Display: -10 to 65°C (14 to 149°F) 35 to 122°F (1.5 to 50°C) spans may go outside of the operating temperature range but the unit must be used within the operating temperature limit
LCD Display Life Expectancy	50,000 Hours Minimum
Operating Temperature Range	35 to 122°F (1.5 to 50°C) spans may go outside of the operating temperature range but the unit must be used within the operating temperature limit
Sensor Output @ 0ºC (32ºF)	A/TT100/TTM100-R/R2: 100 Ohms A/TT1K/TTM1K-R/R2: 1000 Ohms
Terminal Block Torque Rating	0.37 ft-lb (0.5 N-3m) nominal
Calibrated Accuracy \| Linearity	Temp. Spans \< 500°F (260°C): +/- 0.2% Transmitter’s calibrated at 71°F (22°C) nominal
Din Standard \| Temperature Coeffcient	DIN EN 60751 (IEC 751) \| 3850 ppm / °C
Foam Pad Material \| Flammability Rating	Neoprene/EPDM/SBR Polymer \| UL94-HBD; FMVSS-302; MIL-R-6130C
Override Contact Type \| Contact Ratings	Dry Contact “N/O” Contact \| Minimum: 10 uA @ 1 VDC \| Maximum: 50 mA @ 24 VDC
LCD Display Descriptor \| Number of Digits	°F (Fahrenheit) or °C (Celsius) \| 3 ½ Segment Display
Transmitter Supply Voltage \| Supply Current	+8.5 to 32 VDC (Reverse Polarity Protected) \| 25 mA minimum 250 Ohm Load: +13.5 to 32 VDC 500 Ohm Load: +18.5 to 32 VDC “-LCD” Loop Powered: Add +7 VDC to 250/500 Ohm Load Supply Voltage above
Enclosure Specifications (Material, Operating Temperature, NEMA Ratings)	“-R2” Enclosure: ABS Plastic \| White \| UL94-HB “-R” Enclosure: ABS Plastic \| Beige \| UL94-HB
