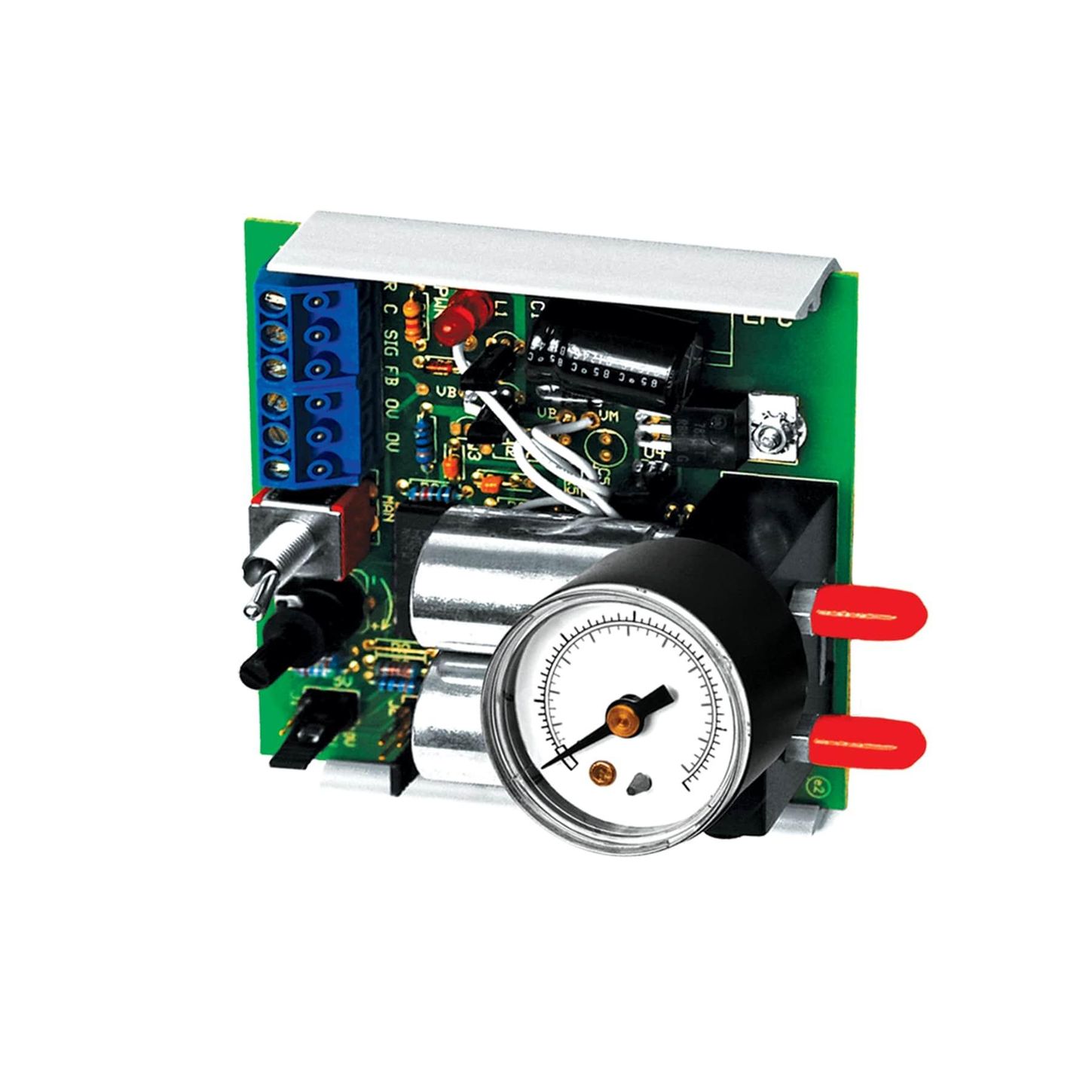

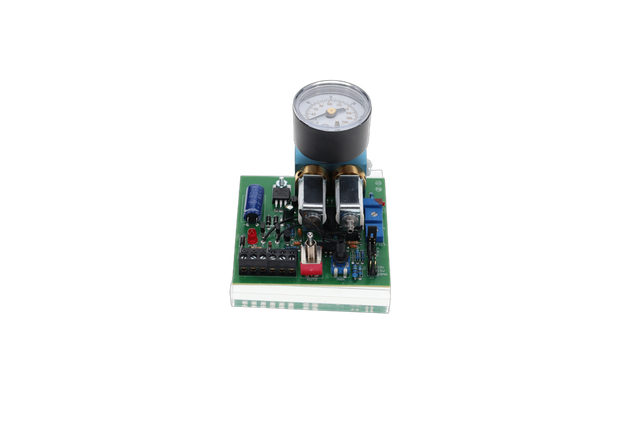

ACI EPCG

Name: ACI EPCG
Brand: ACI
SKU: CS6285292
Availability: OutOfStock

SKU: CS6285292MPN: EPCGAlternate Part #: 102480

Analog Input (0-5VDC), Pressure Output (0-10PSI), Single Valve, 0.007” Bleed Orifice, Gauge, (0-10V, 0-15V 0-20mA), (0-15PSI, 0-20PSI)

Product Details

Analog Input (0-5VDC), Pressure Output (0-10PSI), Single Valve, 0.007” Bleed Orifice, Gauge, (0-10V, 0-15V 0-20mA), (0-15PSI, 0-20PSI)

Product Configuration

Gauge	With Gauge
Valves	1 Valve

Product Family Specifications

Air Flow	Supply valves @ 25 psig (172.38 kPa) main/20 psig (137.9 kPa) out, 2300 scim Branch Line requires 2 in3 / 33.78 cm3 (min.) \| Min. 25 ft of ¼” O.D. poly branch tubing
Filtering	Furnished with integral-in-barb 80-100 micron filter (Part #PN004) except for EPC2LG which is furnished with external 5 micron in-line filter (PN021)
Product Weight	EPCG: 0.46 lbs. (0.2069 Kg) \| EPC2G: 0.70 lbs. (0.3175 Kg) \| EPC2GFS: 0.68 lbs. (0.309 Kg) EPC2GB: 1 lbs 1 oz. (0.482 Kg) \| EPC2GFSB: 0.96 lbs. (0.436 Kg)
Supply Current	500 mAAC, 200 mADC Maximum
Supply Voltage	24 VAC (+/- 10%), 50/60 Hz, 24 VDC (+10% / -5%)
Agency Approvals	RoHS2, WEEE
Pneumatic Fitting	Removable brass fittings for Main \& Branchc in machined manifold, Plugged ⅛-27-FNPT gauge port
Operating RH Range	10 to 95% non-condensing
Snaptrack Material	Polyvinyl Chloride (PVC)
Input Signal Source	0-5 VDC @ infinite Ω \| 0-10 VDC @ infinite Ω \| 0-15 VDC @ infinite Ω \| 0-20 mA / 250Ω
Connections \| Wire Size	90° Pluggable Screw Terminal Blocks \| 16 (1.31 mm2) to 26 AWG (0.129 mm2
Output Pressure Accuracy	1% room temperature \| 2% full scale across operating temperature range
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Feedback Output Signal Range	0-5 VDC \= Output Span
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Manual / Auto Override Switch	MAN function \= output can be varied \| AUTO function \= output is controlled from input signal
Snaptrack Flammability Rating	UL94 V-0
Gauge Pressure Range (Gauge Models)	0-30 psig (0-200 kPa)
Gauge Pressure Accuracy (Gauge Models)	±2.5% Midscale (±3.5% Full Scale)
Manual / Auto Override Feedback Output	Dry Contacts: 24 VDC/VAC @ 1A maximum, N.O. in AUTO operation (Optional: N.O. in MAN operation)
Connections \| Pneumatic Tubing Size-Type	¼” O.D. nominal (⅛” I.D.) polyethylene
Output Pressure Range (Jumper Selectable)	Field Calibration Possible: 0 to 20 psig (0-138 kPa) maximum 0-10 psig (0-68.95 kPa), 0-15 psig (0-103.43 kPa) or 0-20 psig (137.9 kPa)
