ACI ENC1

Name: ACI ENC1
Brand: ACI
SKU: CS6285289
Availability: OutOfStock

SKU: CS6285289MPN: ENC1Alternate Part #: 102472

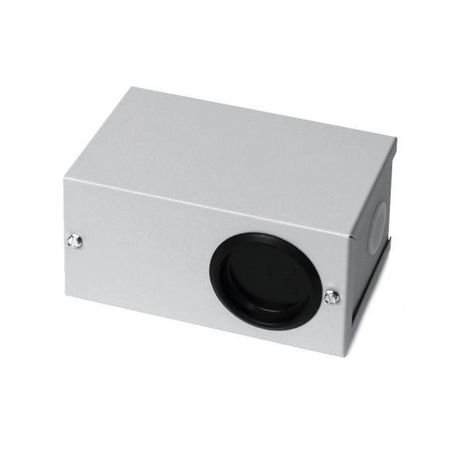

Metal Enclosure, 20GA Metal

Product Details

Metal Enclosure, 20GA Metal

Material Type	20GA Metal Light Gray Powder Coat
Product Weight	1.125 lbs. (0.51 Kg)
Compatible With	AAR, ARM, ARM2, ATL, ATP, AUD, LPR, PTA, PTA2, PTP, PXP, PTS4, RTI \& TOB
Agency Approvals	RoHS2, WEEE

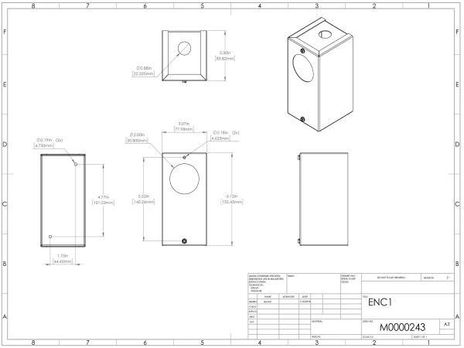

Product Dimensions	(L) 6.12” (155.45 mm) x (W) 3.05” (77.47 mm) x (H) 3.3” (83.82 mm)
Not Compatible With	6N1-ISO, AFP, AIM1, AIM2, AIM3, ASA, DMUX, DRN3.1, DRN4, EFP, EPC, EPW, MAO, MDO, Photon 4.1
Electrical Connections	Base has two ⅞” holes in the ends to accept ½” EMPT conduit fitting for control and power wiring
Operating Humidity Range	10 to 95% non-condensing
Storage Temperature Range	-20 to 150°F (-40 to 65.5°C)
Mounting Provisions (Base)	Base has two 3/16” hole for mounting with screws or bolts
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Mounting Provisions (Interface Product)	Double faced tape for securing interface snap track in enclosure (There is an Adhesive foam Stop provided for holding interface in snaptrack)
