Schneider Electric MP-471-600

SKU: CS622658MPN: MP-471-600UPC/EAN: 711426301076

Act (MP-471-600): Elec, Prop, 2-12 VDC, SR, 120 VAC, TB, 50 in-lb, Rotary, SPDT, Act drive, FB, N1, Erie

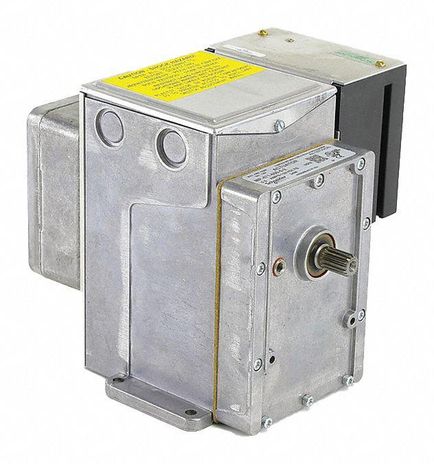

Schneider Electric MP-471-600
$3,441.99
Unit
5+ Units Available at Factory - Ships Same/Next Business Day
remove
add

Product Details

Actuator: (MP-471-600):

  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 2 to 12 VDC
  • Loss of Power Type: Spring Return
  • Power Input Voltage: 120 VAC
  • Leads and Connections: Terminal Block
  • Torque: 50 in-lb
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 1 SPDT
  • Additional Features: Actuator drive, Feedback potentiometer
  • Protection Rating: NEMA 1
  • Product Line: Schneider Electric
  • Product Range: Gear Train
  • Product Series: MPx-4xx
  • Actuator Use: Dampers, Globe Valves

Attributes

Us Rated Supply Voltage 120 V AC
Actuator rotary
Actuator Rotation 180 °
Ambient Air Temperature For Operation -40-57.7 °C
Ambient Air Temperature For Storage -40-71 °C
Analogue Input Range 2…12 V DC
Control Type manual override with 5/32 allen wrench
Electrical Insulation Class class I
Input Current 500 mA
Ip Degree Of Protection IP10
Material die cast aluminium: housing
Motor Type oil immersed motor
Product Destination dampers globe valve
Product Or Component Type actuator
Relative Humidity 5-95 % non-condensing
Switch Function 1 SPDT
Targeted Region North America.
Taxoclass Id PTC_D54012_XXX
Tightening Torque 50 lb.in# #5.6 N.m

Specifications

SKUCS622658
MPNMP-471-600
UPC/EAN711426301076
