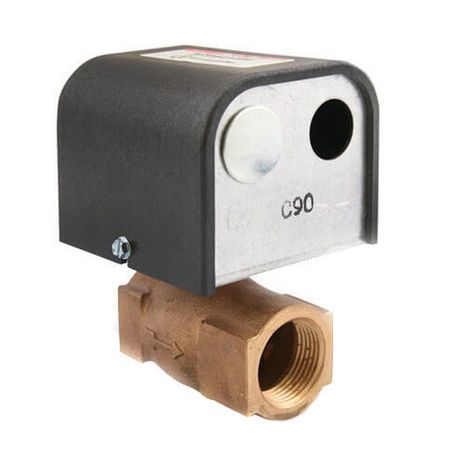

McDonnell & Miller 114783

FS5-D-1, 1” Flow Switch w/2 SPDT switches

For general purpose applications requiring low flow rate sensitivity

Features

• In-line configuration eliminates need for a pipe tee
• Sizes available: ¾” NPT, 1” NPT
• Materials of construction: Brass, carbon \& EPDM elastomer (for water
• Models FS5 \& FS5-D
• Stainless steel, carbon and Buna N (for water or water and petroleum base compounds)
• Models FS5-S \& FS5-DS
• Single pole, double throw snap switch
• Sensitivity adjusting screw makes flow adjustment easy

Optional Features

• BSPT threads
• Minimum temperature (fluid or ambient) 32 Deg. F (0 Deg. C)
• Maximum temperature 225 Deg. F (107 Deg C) - Stainless Steel models 250 Deg. F (121 Deg C) - Brass
• Maximum operating pressure 150 psi (10.5 kg/cm2)
