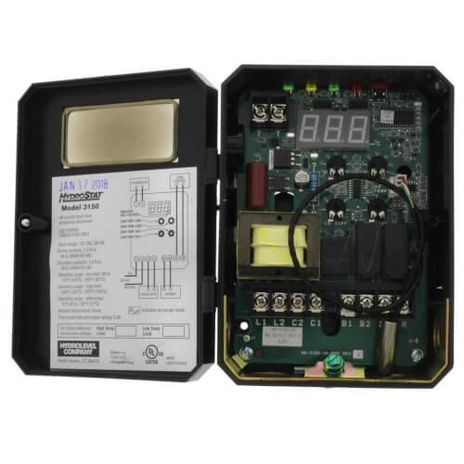

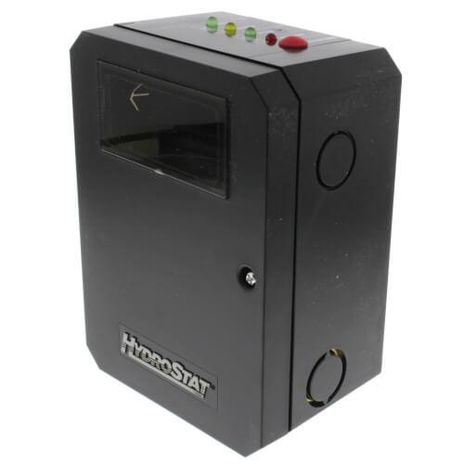

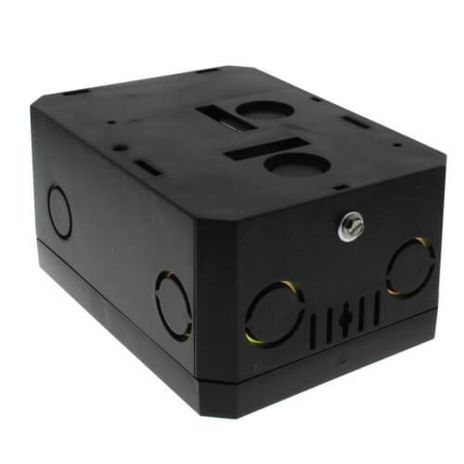

Hydrolevel 48-3150

Model 3150 HydroStat for Oil Boilers (Temperature Limit \& LWCO)

NOTE: Provides temperature functionality only when installed on existing standard immersion well. LWCO functionality activated when installed on Electro-Well (sold separately!) Replaces: L7124, L7124C, L7148A, L7224A, L7224C, L7224U, L7248C, L8124A, L8124C, L8148A, L8148C

Overview

By installing the control on an existing immersion well, HydroStat® can be used as a universal replacement for common Aquastat® models. (see “Note” at bottom for models this will replace) Whether it’s a cold start or a tankless coil boiler, Hydrostat® will provide all the temperature functions of the control being replaced.

Or, install HydroStat® on a Hydrolevel Electro-Well (sold separately) to automatically activate the low water cut-off function. With HydroStat® you can add low water cut-off protection to new or existing installations without the added time and cost to install a separate control.

Features

• Replaces Cold Start and Triple-Action Aquastats®
• Install it on existing immersion well for full temperature functionality, or
• Install it on an Electro-Well to add low water cut-off protection
• Simple Dial Type Temp and Differential Settings
• Easy to wire - uses the same terminal designations as common Aquastat® models
• Dynamic Temperature Display
• Four on-board diagnostic indicating lights

Specifications

• Burner Contacts: 7.4 FLA, 44.4 LRA@120VAC
• Circulator Contacts: 5.8 FLA, 34.8 LRA@120 VAC
• Operating Range - Low Limit: OFF or 110°F - 200°F
• Operating Range - High Limit: 100°F - 220°F
• Operating Range - Low Differential: 10°F - 30°F
• Operating Range - High Differential: 10°F - 30°F
