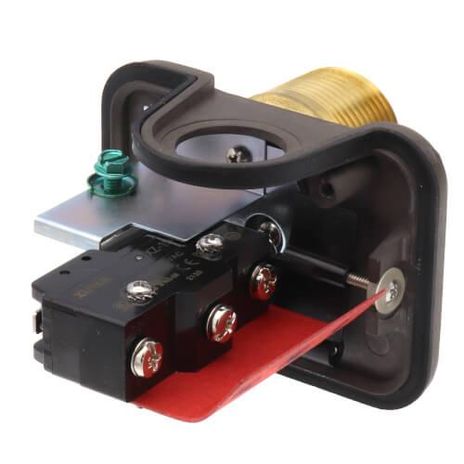

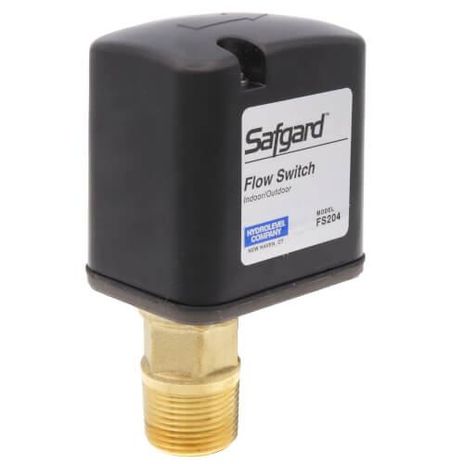

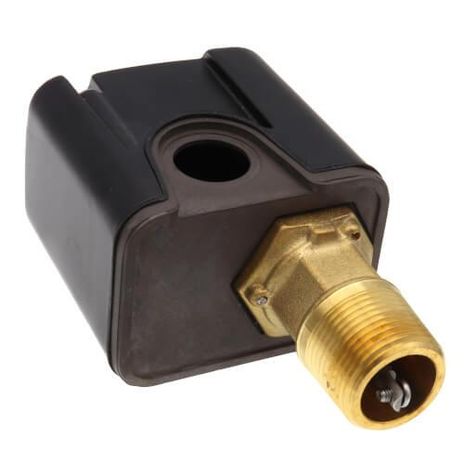

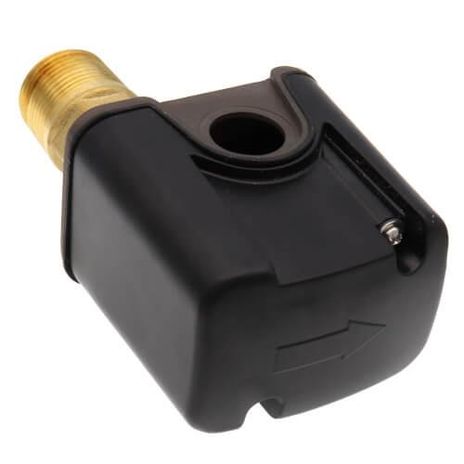

Hydrolevel 44-204

Safgard FS204 General Purpose Liquid Flow Switch for 1” to 6” Pipes w/ NEMA 4 Enclosure

The Safgard FS204 Flow Switch is used to start or stop electrically operated equipment such as burners, pumps or alarms by detecting liquid flow through piping. It is designed for use in water media applications and is not intended for use in hazardous or corrosive fluids. The FS204 is suitable for wet locations.

Product Features

• Enclosure: NEMA 4 General Purpose – with 2 knockouts
• Max. Pressure: 160 PSI
• Max. Temperature: 250° F
• Switch Contacts: SPDT
• EPDM Seal for Superior Performance over Mechanical Bellows
• Universal Design – Replaces Flow Switches by McDonnell Miller, Penn, Taco, Potter, Watts and others
• Single Pole Double Throw Switch for Operating Signal Devices, Motors, Alarms, Metering Devices and Heating Units
• Four Heavy Duty Stainless Steel Paddles
• Two ⅞” Electrical Knock-Outs for ½” Conduit
• For Use on 1” to 6” Diameter Pipe
• 1” NPT Pipe Connection
