Process InstrumentationOmega

Omega PGT-45B-300

SKU: CS6095413MPN: PGT-45B-300

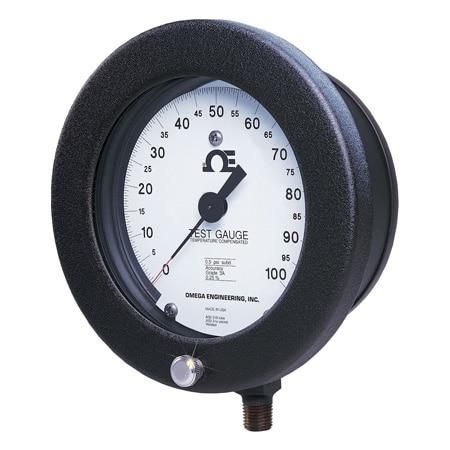

Large, High Accuracy Pressure Gauges with Adjustable Dial

Omega PGT-45B-100, PGT-45B-1000, PGT-45B-10000, PGT-45B-15, PGT-45B-150, PGT-45B-1500, PGT-45B-200, PGT-45B-2000, PGT-45B-30, PGT-45B-300, PGT-45B-3000, PGT-45B-30V, PGT-45B-30V/100, PGT-45B-30V/15, PGT-45B-30V/150
$1,040.17
Unit
Available on backorder
remove
add

Product Details

  • 0.25% FS Accuracy
  • Monel Wetted Parts
  • Stem and Panel Mount
  • Mirrored Scale

Attributes

Accuracy ± 0.25 %
Dial Dia 4.5 in
Dial Note Externally adjustable, aluminum, white background, black graduations and polished mirror band; Figure Interval: 25 psi
Series ID PGT
Housing Width 2.875 in
Accuracy Detail 0.25% full scale
Dial Graduation 0.05 psi
Safety Features Solid front with pressure relief back
Housing Diameter 6.0938 in
Country of Origin United States
Materials, Wetted Monel
Connection Location Back Fitting
Additional Features 1 Back Connection
Housing Material Note Window Material: Glass ; Movement Material: Stainless steel
Media Temperature Note 66°C (150°F) [models will withstand continuous temperature up to 177°C (350°F), but there will be discoloration of case and dial face]
Media Temperature, Max 66 °C
Process Connection Size ½ in
Process Connection Type NPT Male
Temperature Compensation 0.005% FS/°F
Measurement Pressure Type Gauge
Measurement Pressure, Max 300 psi
Measurement Pressure, Min 0 psi
Operating Temperature, Max 177 °C
Operating Temperature, Min 0 °C

Specifications

SKUCS6095413
MPNPGT-45B-300
