Omega CSF00054
SKU: CS6094025MPN: CSF00054

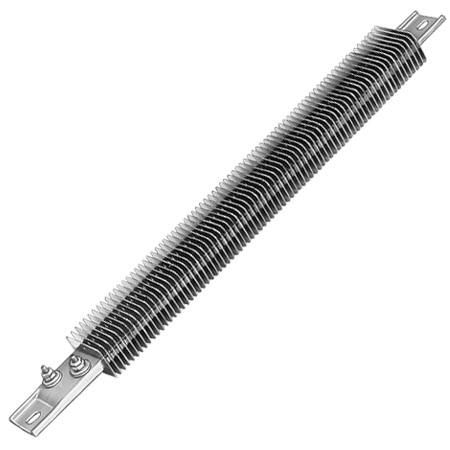

Finned Stainless Steel Strip Heater Diagonal Terminals
$246.31
UnitAvailable on backorder
Product Details
- Rugged, Durable Construction
- Stainless Steel Sheath
- Nickel-Plated Steel Fins (Stainless Steel Optional)
- Various Terminations
Attributes
| Height | 0 in |
| Length | 12 in |
| Series ID | CSF4 |
| Form factor | Finned |
| Termination | Terminals parallel on one side |
| Thread Size | 10-32 |
| Thread Type | UNF |
| Applications | Food and Beverage, Food Processing Equipment, Heating Equipment |
| Current, Max | 25 A |
| Heater Power | 900 W |
| Voltage Note | 480 Vac (when applicable) |
| Voltage, Max | 480 Vac |
| Fins Material | Nickel Plated Steel |
| Supply Voltage | 240 Vac |
| Power Tolerance | 5%, -10% |
| Sheath Material | 304 Stainless Steel |
| Length Tolerance | Up to 0.61 m (24”) ± 1/16”, over 0.61 m (24”) ± ⅛” |
| Country of Origin | United States |
| Mounting Slot Size | 8 mm x 13 mm |
| Power Density, Min | 34 W/in² |
| Resistance Tolerance | 10%, -5% |
| Width Including Fins | 51 mm |
| Height Including Fins | 35 mm |
| Sheath Temperature, Max | 650 °C |
| Number of Mounting Holes | 2 |
| Slot Size For Secondary Insulating Bushing | 13 mm x 16 mm |
Specifications
| SKU | CS6094025 |
|---|---|
| MPN | CSF00054 |
