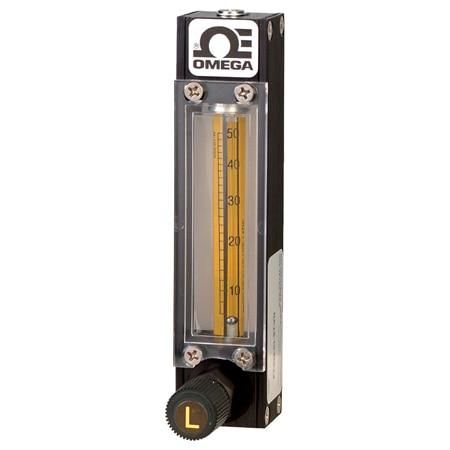

Omega FLDW3207ST
SKU: CS6033775MPN: FLDW3207ST
Direct Read, Panel Mount Variable Area Flow Meters
$243.64
UnitAvailable on backorder
Product Details
- Direct Read Variable Area Flow Meters for Air, Water, N2, H2, CO2, Ar, He, and O2
- Rib-Guided or Fluted Metering Tubes Facilitate Stable, Accurate Readings
- Magnifier Lens in Front Shields to Enhance Reading Resolution
- Interchangeability of Flow Tubes and Floats
Attributes
| Scale | Direct Read |
| Accuracy | ± 5 % |
| Mounting | Panel Mount |
| Materials | Aluminum, Polycarbonate |
| Back Plate | ⅛” thick white acrylics |
| Float Type | 316 Stainless Steel |
| Valve Type | 6-Turn Valve |
| Scale Length | 65 mm |
| Repeatability | ± 0.25% |
| Turndown Ratio | 10:1 |
| Valve Included | true |
| Water Flow, Max | 60 ml/min |
| Water Flow, Min | 6 ml/min |
| Country of Origin | United States |
| Materials, Wetted | 316 Stainless Steel, Aluminum, Borosilicate, Buna-N (NBR) |
| Media Compatibility | Clean process / cooling water |
| Center-to-Center Length | 65 mm |
| Operating Pressure, Max | 200 psi |
| Process Connection Size | ⅛ in |
| Process Connection Type | NPT Female |
| Process Temperature, Max | 121 °C |
| Mounting Fittings In Contact With Fluids | 316 stainless steel, Aluminum, black anodized |
Specifications
| SKU | CS6033775 |
|---|---|
| MPN | FLDW3207ST |
