Omega PX91P0-80KSI

Name: Omega PX91P0-80KSI
Brand: Omega
SKU: CS6013834
Price: 3043.29 USD
Availability: OutOfStock

SKU: CS6013834MPN: PX91P0-80KSI

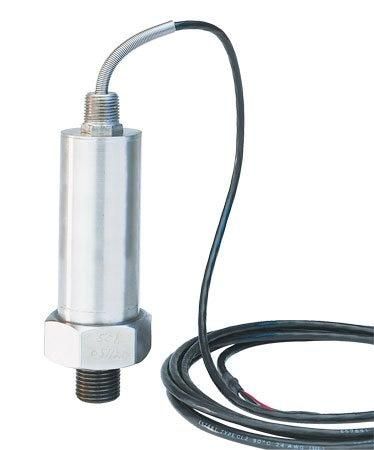

High Temperature, High Pressure Transducers

$3,043.29

Unit

Available on backorder

Quantity

remove

add

Product Details

Ranges up to 200,000 PSI
High Operating Temperature 121°C (250°F), up to 218°C(425°F) for mV/V output types
Hermetically Sealed for Harsh Environments
Pressure Adaptors Available

Series ID	PX91
Hysteresis	± 0.10% FSO
Cable Length	3 m
Output Signal	Current
Accuracy Class	> 0.25%
Burst Pressure	120% Full Scale
Proof Pressure	110% Full Scale
Supply Voltage	12 to 40 Vdc
Linearity Error	± 0.50%
Country of Origin	United States
Electrical Output	4 to 20 mA
Materials, Wetted	455 Stainless Steel
Zero/Balance Error	4 mA (+10%, -2% adj)
Burst Pressure Note	120% of rated pressure
Proof Pressure Note	110% of rated pressure
Repeatability Error	± 0.1% full scale
Electrical Connection	Cable
Electrical Output Note	4 to 20 mA ± 10% adj
Process Connection Note	1-14 NS-2 (use 0.910” dia. 150° ferrule)
Process Connection Size	1 in
Process Connection Type	High Pressure NS-2
Measurement Pressure Type	Sealed Gauge
Measurement Pressure, Max	80000 psi
Measurement Pressure, Min	0 psi
Operating Temperature, Max	121 °C
Operating Temperature, Min	-46 °C
Compensated Temperature, Max	71 °C
Compensated Temperature, Min	17 °C
Thermal Effect on Span error, Max	0.005% rdg/°F
Thermal Effect on Zero error, Max	0.005% rdg/°F, 0.005% FSO/°F

SKU	CS6013834
MPN	PX91P0-80KSI
