Turck BIM-UNT-AP6X-2-PSW3M/S1139
SKU: CS5980668MPN: BIM-UNT-AP6X-2-PSW3M/S1139Alternate Part #: 100002202UPC/EAN: 4047101460056
$101.19
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- For T-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylinder designs
- One-hand mounting possible
- Stable mounting
- Magneto-resistive sensor
- Long overtravel
- For large cylinders
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end, M8 x 1
Attributes
| Ambient Temperature | -25…+70 °C |

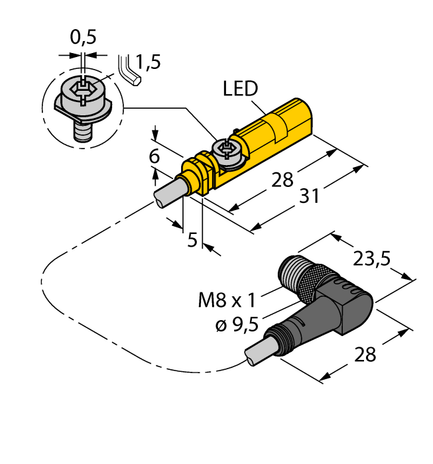

| Construction Size | 28 x 5 x 6 mm, UNT |
| Customs Tariff Number | 85365019900.0000 |
| Cylindrical Design | Dovetail groove cylinder, T-groove cylinder, Round cylinder, Tie-rod cylinder |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable with connector, M8 × 1 |
| Housing Material | Plastic, PP |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
Specifications
| SKU | CS5980668 |
|---|---|
| MPN | BIM-UNT-AP6X-2-PSW3M/S1139 |
| Alternate Part # | 100002202 |
| UPC/EAN | 4047101460056 |
