Turck EKRB001-ESWB001-A5.500-WE8Y-0.3
SKU: CS5977520MPN: EKRB001-ESWB001-A5.500-WE8Y-0.3Alternate Part #: 200002378
$39.35
UnitAvailable on backorder
Product Details
Actuator and Sensor Cordset
Extension Cable

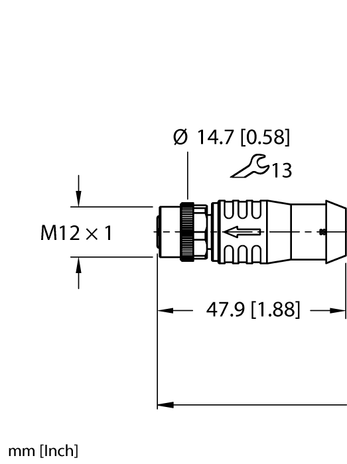

- M12, Female, Straight, 5-pin

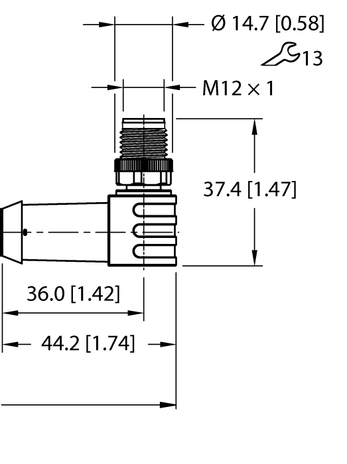

- M12, Male, Right angle, 5-pin
- Instrumentation Tray Cable
- Yellow TPE jacket, 5X18 AWG
- Sunlight Resistant
- -40 Cold Bend Rating
- Oil Resistant
- Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
- Flexlife® and C-Track Approved
Attributes
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
| Cable Diameter | Ø 7.62 mm |
| Cable Jacket | TPE, Yellow |
| Connector Body | Plastic, TPU, Yellow |
| Coupling Nut | Brass, CuZn, Nickel-plated |
| Current | 5 A |
| Design | Double-ended |
| Ecl Ss Code V5 1 4 | 27250107 -/- Connection cable sensor-actuator |
| Number Of Conductors | 5.0000 |
| Number Of Contacts | 5 |
| Protection Class When Coupled | IP67, IP68, IP69, IP69K |
Specifications
| SKU | CS5977520 |
|---|---|
| MPN | EKRB001-ESWB001-A5.500-WE8Y-0.3 |
| Alternate Part # | 200002378 |
