Siemens 599-03170

Name: Siemens 599-03170
Brand: Siemens Building Technologies
SKU: CS597713
Price: 423.67 USD
Availability: InStock

SKU: CS597713MPN: 599-03170UPC/EAN: 804766016936

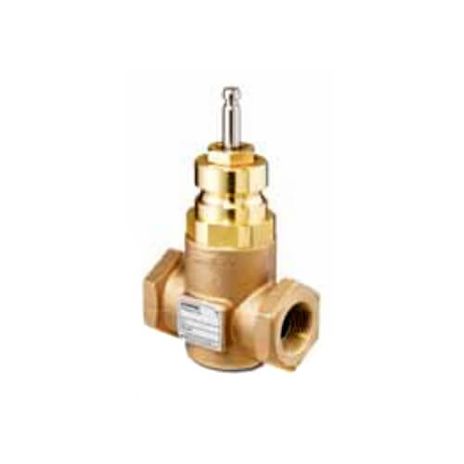

Flowrite 2” 2-Way Valve, NO, 40 Cv, Equal Percentage, Brass Trim, F×F, ANSI 250

Siemens Building Technologies 599-03162, 599-03170

$423.67

Unit

5 in stock

Quantity

remove

add

Product Details

Flowrite, 2” 2-Way Valve, 40 Cv, Equal Percentage, NO, F×F, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, No tools required for installation.

Attributes

Connecting Thread	NPT, direct-coupled universal bonnet
End Connection	FxF
Flow Characteristic	Equal-percentage
Flow Coefficient Cv	40.0000
High Temperature	NO
Leakage Rate	Class IV (0.01% of Cv)
Material Inside Set	Body Trim: Brass;Stem: Stainless Steel ASTM A582 Type 303;Normal Duty Packing: EPDM O-ring;Seat: Single seat metal-to-metal
Material Valve Body	UNS CA 844 bronze
Medium	Saturated steam;Water;Water with anti-freeze
Medium Temperature	20…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	20 ºF
Mounting Position	vertical, horizontal, upright
Normally Open Normally Closed	Normally Open
Permissible Operating Pressure	2758 kPa
Port Configuration	2-Way Normally open
Rangeability	100:1
Stroke	¾ in., 20 mm
Trim Material	Brass
Valve Body Style	Stroke-Globe
Valve Size	2 in
Valve Type	Two-way
