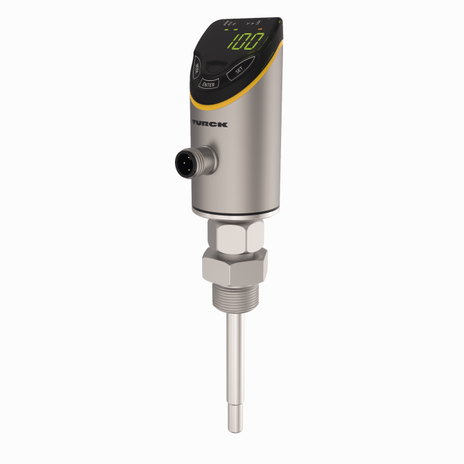

Turck FS101-300L-62-2UPN8-H1141
SKU: CS5977032MPN: FS101-300L-62-2UPN8-H1141Alternate Part #: 100030870UPC/EAN: 4047101559200
$738.18
UnitAvailable on backorder
Product Details
Flow Sensor
- Screw-in adapter with process connection G½″ male thread included in delivery
- Electronics housing material/media-contacting 1.4404 (316L)/1.4571 (316Ti)
- Immersion depth 64.9 mm
- 4-digit 12-segment display, rotatable by 180°
- Flow monitoring for liquid media
- Protection classes IP66, IP67 and IP69K
- Adjustment of flow speed via teach function
- 17…33 VDC
- NO/NC contact, PNP/NPN output, IO-Link
- Connector, M12 × 1
Attributes
| Ambient Temperature | -40…+85 °C |
| Approvals | CE, cULus |
| Communication Protocol | IO-Link |
| Customs Tariff Number | 90261021000.0000 |
| Design | With display (integrated probe) |
| Ecl Ss Code V5 1 4 | 27273190 -/- Flow meter (not classified) |
| Electrical Connection | Connector, M12 × 1 |
| Function | Flow monitoring |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV |
| Medium | liquids |
| Medium Temperature | -25…+85 °C |
| Operating Voltage | 17…33 VDC |
| Output Function | NO/NC programmable, PNP/NPN |
| Process Connection | G ½″ male thread |
| Protection Class | IP66/IP67/IP69K |
Specifications
| SKU | CS5977032 |
|---|---|
| MPN | FS101-300L-62-2UPN8-H1141 |
| Alternate Part # | 100030870 |
| UPC/EAN | 4047101559200 |
