Turck EKWB-ESWB-A5.500-GU24.SP-3.3
SKU: CS5976084MPN: EKWB-ESWB-A5.500-GU24.SP-3.3Alternate Part #: 200003892
$64.60
UnitAvailable on backorder
Product Details

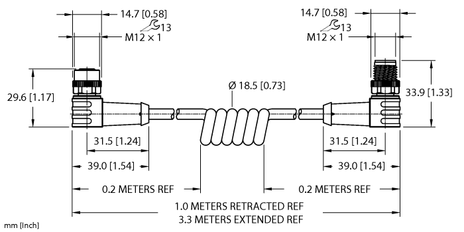

Actuator and Sensor Cordset
Extension Cable
- M12, Female, Right angle, 5-pin
- M12, Male, Right angle, 5-pin
- General Purpose Cable
- TPU jacket, Gray, 5X22 AWG
- -40 Cold Bend Rating
- Flame Ratings: UL1061, CSA FT1
- Flexlife® and C-Track Approved
Attributes
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
| Cable Diameter | Ø 5.33 mm |
| Cable Jacket | TPU, Gray |
| Connector Body | Plastic, TPU, Black |
| Coupling Nut | Brass, CuZn, Nickel-plated |
| Current | 4 A |
| Design | Double-ended |
| Ecl Ss Code V5 1 4 | 27250107 -/- Connection cable sensor-actuator |
| Number Of Conductors | 5.0000 |
| Number Of Contacts | 5 |
| Protection Class When Coupled | IP67, IP68, IP69, IP69K |
Specifications
| SKU | CS5976084 |
|---|---|
| MPN | EKWB-ESWB-A5.500-GU24.SP-3.3 |
| Alternate Part # | 200003892 |
