All ProductsTurck

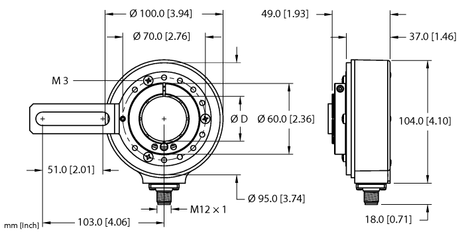

Turck RI-43H42S8-2B4096-H1181

SKU: CS5975957MPN: RI-43H42S8-2B4096-H1181Alternate Part #: 200003431
Turck RI-43H42S8-2B4096-H1181
$876.04
Unit
Available on backorder
remove
add

Product Details

Incremental Encoder

Industrial Line

  • Flange with long arm bracket, Ø 100 mm
  • Hollow shaft, Ø 42mm
  • Optical measuring principle
  • Shaft material, stainless steel
  • Protection class IP65 on shaft side
  • -40…+70 °C
  • Max. 6000 rpm
  • 10…30 VDC
  • Male connector, M12 x 1 , 8-pole
  • Push-pull, with inverted signals
  • Pulse frequency max. 300 kHz
  • 4096 pulses per revolution

Attributes

Ambient Temperature -40…+70 °C
Ecl Ss Code V5 1 4 27270502 -/- Encoder, incremental
Electrical Connection Connector, M12 × 1
Encoder Line Industrial-Line
Flange Diameter Ø  100 mm
Flange Type Flange with mounting element
Housing Material Die-cast zinc
Operating Voltage 10…30 VDC
Output Function Push-Pull/HTL, with inverted signals
Output Type Incremental
Protection Class IP65
Protection Class Shaft IP65
Resolution Incremental 4096  ppr
Shaft Diameter D Mm 42 mm
Shaft Type Hollow shaft
Technology Optical

Specifications

SKUCS5975957
MPNRI-43H42S8-2B4096-H1181
Alternate Part #200003431
