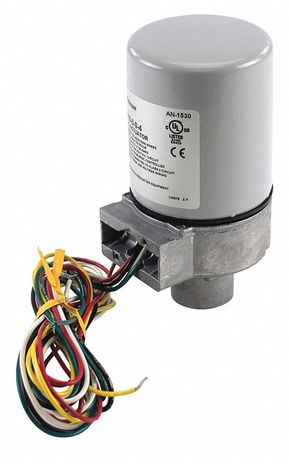

Schneider Electric MPR-5610
SKU: CS583357MPN: MPR-5610UPC/EAN: 711426210460
Act (MPR-5610): Elec/Hyd, Prop, 4-20 mAdc, SR, 120 VAC, App, 15 in-lb, Linear, N1, Erie
$1,351.87
UnitAvailable on backorder
Product Details
Actuator: (MPR-5610):
- Actuator Type: Electric/Hydraulic
- Control Signal: Proportional
- Control Signal Range: 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Power Input Voltage: 120 VAC
- Leads and Connections: 4 ft Appliance
- Torque: 15 in-lb
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: Electronic Hydraulic
- Product Series: MPR-5600
- Actuator Use: Dampers, Globe Valves
Attributes
| Us Rated Supply Voltage | 120 V AC |
| Actuator | linear |
| Ambient Air Temperature For Operation | -28.8-39.4 °C |
| Ambient Air Temperature For Storage | -40-60 °C |
| Analogue Input Range | 4…20 mA DC |
| Control Type | manual override with 5/32 allen wrench |
| Electrical Insulation Class | class I |
| Ip Degree Of Protection | IP10 |
| Motor Type | oil immersed motor |
| Power Consumption In Va | 18 VA AC |
| Product Destination | dampers globe valve |
| Product Or Component Type | actuator |
| Relative Humidity | 5-95 % non-condensing |
| Switch Function | No |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54060_XXX |
| Tightening Torque | 15 lb.in# #1.7 N.m |
Specifications
| SKU | CS583357 |
|---|---|
| MPN | MPR-5610 |
| UPC/EAN | 711426210460 |
