Omega LTUR-2011
SKU: CS5803850MPN: LTUR-2011

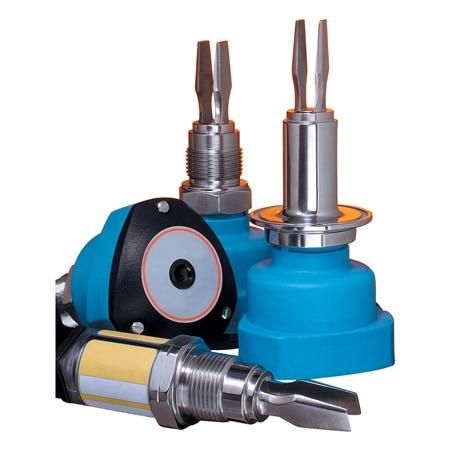

Threaded, Flanged, Tri-Grip Tuning Fork Level Switches
Product Details
- Unaffected by Product Variations in Density, Conductivity, Dielectric Constant or Viscosity up to 20,000 Centistokes
- Various Process Connections: Thread, Tri-Clamp, Flanges, etc.
- Custom Lengths up to 5’ to Best Suit Your Application
- Made with 316 SS Standard
Attributes
| Accuracy | ± 0.1 % |
| Approvals | RoHS |
| Materials | Glass-Filled Nylon |
| Series ID | LTU2000-Series |
| Time Delay | 1 to 20 sec |
| Switch Type | SPDT NO/NC, Selectable |
| Probe Length | 3.125 in |
| Repeatability | ± 0.02 inH2O |
| Switch Rating | 5 A @ 250 Vac |
| Supply Voltage | 20 to 60 Vdc, 20 to 264 Vac |
| Switching Point | 12 mm from Tip |
| Viscosity Range | 0.5 to 5000 cSt |
| Insertion Length | 3.15 in |
| Country of Origin | Brazil |
| Enclosure Ratings | IP65, NEMA Type 4 |
| Materials, Wetted | 316 Stainless Steel |
| Power Consumption | 10 mA |
| Supply Power Type | AC/DC |
| Media Compatibility | Clean process / cooling water, Oils / lubricants, Organic solvents |
| Electrical Connection | Cable Gland with Screw Terminal block |
| Operating Pressure, Max | 725 psi |
| Process Connection Size | ¾ in |
| Process Connection Type | NPT Male |
| Operating Temperature, Max | 80 °C |
| Operating Temperature, Min | -10 °C |
Specifications
| SKU | CS5803850 |
|---|---|
| MPN | LTUR-2011 |
