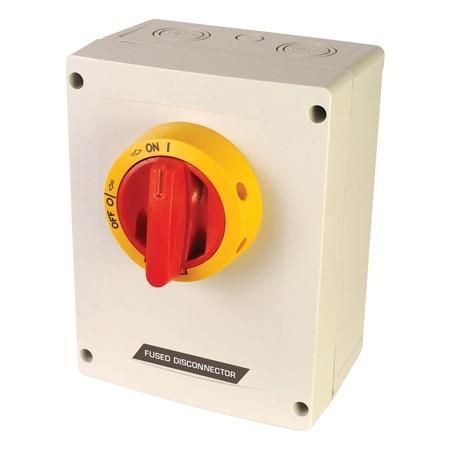

Omega AU-KKVM332-YR
SKU: CS5803095MPN: AU-KKVM332-YR
NEMA 4X Rated 3-Pole Fused Disconnect Switch
$462.93
UnitAvailable on backorder
Product Details
- Across-the-Line Motor Starting
- General Use Rating 30A, 3-Pole 600 Vac
- Interrupting Capacity Rating 10 kA
- NEMA Type 4X, IP65 for Indoor or Outdoor Use
Attributes
| Width | 144 mm |
| Height | 190 mm |
| Length | 131 mm |
| Weight | 0.998 kg |
| Series ID | KKVM-Series |
| Wire Gauge | 14 to 8 AWG |
| Switch Note | Polybutylene terephthalate (PBT) polyester resin |
| Switch Type | Fused Disconnect Switch |
| Voltage, Max | 600 Vac |
| Color Options | Yellow/Red |
| Relay Current | 30 A |
| Number of Poles | 3 |
| Wire Gauge Note | 14-8 AWG (Cu conductors only, 75°C) |
| Conduit Entrance | M25/32 (2) and M16 (1) top and bottom |
| Contact Material | Copper with silver alloy plating |
| Country of Origin | Finland |
| Enclosure Ratings | IP65, NEMA Type 4X |
| Tightening Torque | 16 lb.in |
| Enclosure Material | Polycarbonate |
| Additional Features 1 | 10 x 38 midget fuses with lockable handle |
| Short-Circuit Protected | 10 kA @ 600 V with Maximum Fuse |
| Enclosure Temperature, Max | 130 °C |
| Enclosure Temperature, Min | -35 °C |
| Operating Temperature, Max | 40 °C |
| Operating Temperature, Min | -20 °C |
Specifications
| SKU | CS5803095 |
|---|---|
| MPN | AU-KKVM332-YR |
