Omega PRS-3-100-A-H-0300-D1-M12

SKU: CS5802995MPN: PRS-3-100-A-H-0300-D1-M12

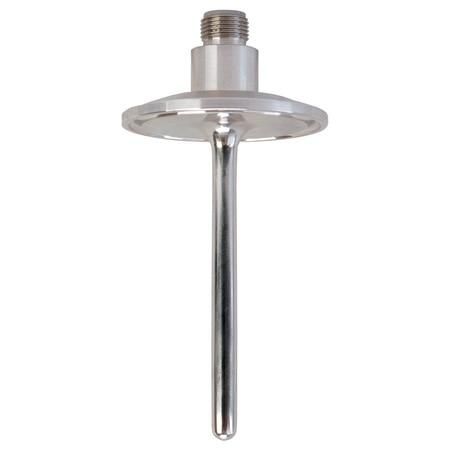

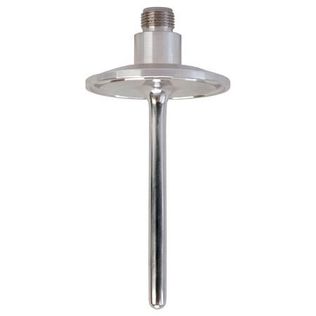

M12 Connector RTD Probes with Class A Accuracy 3-A Sanitary

Omega PRS-3-100-A-H-0300-D1-M12, PRS-3-100-A-H-0300-E1-M12, PRS-3-100-A-H-0400-D1-M12, PRS-3-100-A-H-0400-E1-M12, PRS-3-100-A-H-0500-D1-M12, PRS-3-100-A-H-0500-E1-M12, PRS-3-100-A-H-0500-G1-M12, PRS-3-100-A-H-0600-D1-M12, PRS-3-100-A-H-0600-E1-M12, PRS-3-100-A-S-0300-B1-M12, PRS-3-100-A-S-0300-D1-M12, PRS-3-100-A-S-0300-E1-M12, PRS-3-100-A-S-0300-G1-M12, PRS-3-100-A-S-0400-D1-M12, PRS-3-100-A-S-0400-E1-M12
$384.56
Unit
Available on backorder
remove
add

Documents

Product Details

  • Pt100 Class A Sensor with M12, 4-Pin Connection Allows for Quick and Easy Installation. An M12 Extension Cable is Required for Installation.
  • 3-A Approved Design, Flanges conform to ASME-BPE-2007
  • Can Be Used In Sanitary, Hygienic, and Clean-In-Place Food, Dairy, Beverage and BioPharmaceutical Applications
  • Wetted Surfaces are 316L Stainless Steel With a Surface Finish \= 32 Microinches or Better

Attributes

Accuracy Class A
Series ID PRS-3-100-M12
Insulation PVC
Probe Length 3 in
Probe Diameter 0.375 in
Accuracy Detail Class A per IEC60751
Number of Wires 4
Sheath Material 316L Stainless Steel
Country of Origin United States
Nominal Resistance 100 Ω
Electrical Connection M12 4 pin Female
Process Connection Size 1 ½ in
Process Connection Type Tri-Clamp
Temperature Probe Style Heavy Duty Sanitary Probe
Temperature Sensor Type RTD
Process Temperature, Max 200 °C
Process Temperature, Min -50 °C

Specifications

SKUCS5802995
MPNPRS-3-100-A-H-0300-D1-M12
