Omega RTD-809
SKU: CS5802891MPN: RTD-809

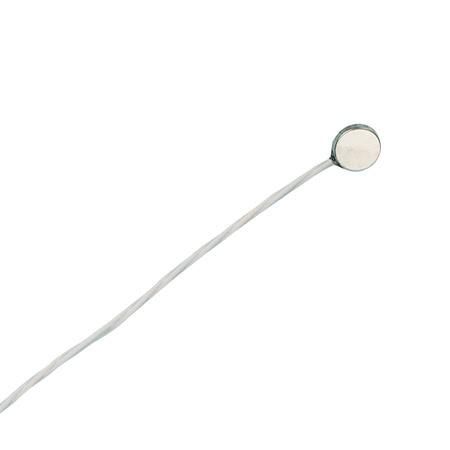

Glue-On RTD Surface Sensors with Coin Style SS Housing
Product Details
- Flat Disc Shape is Ideal for Surface Temperature Measurements
- Bonds to Surfaces for Measuring Heat Loss or Operating Temperatures
- Sensor Contains a High-Accuracy, 100 Ohm, Class “A” DIN Platinum Element. 1 meter (40’) or PFA Insulated \& Jacketed Cable and 3-Pin Miniature Connector
- Temperature Coefficient (Alpha) \= .00385 ohm/ohm/°C
Attributes
| Accuracy | Class A |
| Series ID | RTD-809-Series |
| Wire Type | Stranded |
| Insulation | PFA |
| Wire Gauge | 26 AWG |
| Cable Clamp | PCLM-MTP |
| Cable Length | 40 in |
| Tip Diameter | 0.4375 in |
| Tip Thickness | 0.125 in |
| Cable Material | Nickel, Copper |
| Accuracy Detail | Class A DIN per IEC60751 |
| Number of Wires | 3 |
| Mating Connector | 3-Prong Miniature Female Thermocouple Connector |
| Country of Origin | United States |
| Nominal Resistance | 100 Ω |
| Electrical Connection | 3-Prong Miniature Male Thermocouple Connector |
| Temperature Sensor Type | RTD |
| Process Temperature, Max | 230 °C |
| Process Temperature, Min | -60 °C |
Specifications
| SKU | CS5802891 |
|---|---|
| MPN | RTD-809 |
