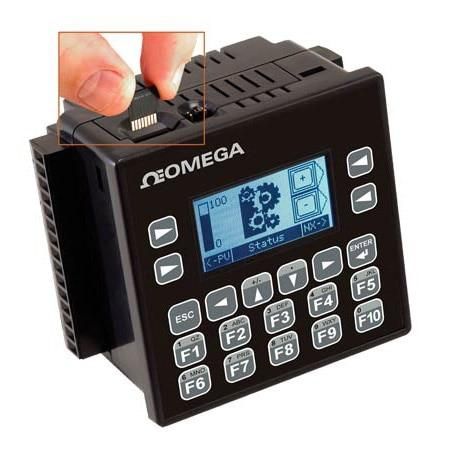

Omega HE-XT105

SKU: CS5802709MPN: HE-XT105

All-In-One Controllers PLC, HMI, I/O, \& Data Logging

Omega HE-XE102, HE-XE103, HE-XE104, HE-XE105, HE-XT102, HE-XT103, HE-XT104, HE-XT105
$5,220.98
Unit
Available on backorder
remove
add

Documents

Product Details

  • PLC + Operator Interface
  • Free Programming Software
  • Removable Mass Data Storage (MicroSDTM)
  • Supports Data Logging

Attributes

Width 95.1 mm
Height 95.1 mm
Keypad Total Keys: 20 (XLe) Function Keys: 10 (XLe) Numeric Keys: Shared (XLe)
Length 63.9 mm
Weight 0.354 kg
Series ID OCSXL-Series
Input Type Universal Analog Inputs
Memory Card Upto 2 GB
Memory Note Ladder Logic Memory: 256 kB
Display Size 152 mm (6 in)
Display Type Touchscreen
Relay Output Mechanical Contact
Data Interface RS232, RS485
Digital Output Selectable
Supply Voltage 12 to 24 Vdc
Controller Type Selectable
Impedance Input 10 kΩ
Digital I/O Note Maximum Upper Threshold: 8 Vdc Minimum Lower Threshold: 3 Vdc OFF to ON Response: 1 ms ON to OFF Response: 1 ms High Speed Counter(HSC) Switching Rate: 10 kHz totalizer/pulse, edges, 5 kHz frequency/pulse, width, 2.5 kHz quadrature
Number of Inputs 12 Digital Inputs
Analog Input Note Input Ranges (Selectable): 0 to 10 Vdc, 0 to 20 mA, 4 to 20 mA, 100 mV, Pt100 RTD and J, K, N, T, E, R, S, B thermocouples;Thermocouple Ranges: B/R/S: 0 to 1600°C (32 to 2912°F) E: -200 to 900°C (-328 to 1652°F) T: -240 to 400°C (-400 to 752°F) J: -210 to 750°C (-346 to 1382°F) K/N: -240 to 1370°C (-400 to 2498°F) Nominal Resolution 10V, 20 mA, 100 mV: 14 bits Nominal Resolution RTD, Thermocouple: 16 bits Conversion Time per Channel 10V, 20 mA, 100 mV: 16.7 mS Conversion Time per Channel RTD, Thermocouple: 66.7 mS Maximum Thermocouple Error (After Warm Up Time of One Hour): ±0.2% (±0.3% below -100°C)
Country of Origin United States
Display Size Note Graphics/Text: Yes/Yes Pixels: 160 x 128 (XLt) Display Technology: Daylight readable touchscreen (XLt, XL6)
Electrical Output Sourcing/10 K pull-Down
Enclosure Ratings IP66, NEMA Type 4X
Analog Output Note Output Ranges: 0 to 10 Vdc, 0 to 20 mA Nominal Resolution: 12 bits Update Rate: Once per PLC scan Minimum 10V Load: 1 kΩ Maximum 20 mA Load: 500 Ω Maximum Error at 25°C (Excluding Zero): 0.1%
Digital Output Note Absolute Max Voltage: 28 Vdc maximum Output Protection: Short circuit Maximum Output Current per Point: 0.5 A Maximum Total Current: 4 A continuous Maximum Output Supply Voltage: 30 Vdc Minimum Output Supply Voltage: 10 Vdc OFF to ON Response: 1 mS ON to OFF Response: 1 mS
Additional Features 1 Ethernet Support, Telephone Modem Support, Wireless Modem Support, Cell Modem Support
Additional Features 2 DC/DC and universal analog, XLt Series
Control Characteristics Logic Scan Rate: 1.2 mS/K; Local Comment Storage: Yes;Floating Point Support: Yes;Auto Tune PID capable: Yes
Number of Control Outputs 12 DC Outputs
Network and Communications Integrated CsCan Network: Yes Maximum CsCan Distance: 189 m (6000’) Programming Over Network: Yes Peer-to-Peer Message: Yes DeviceNet/PROFIBUS Master: No
Operating Temperature, Max 50 °C
Operating Temperature, Min 0 °C
I/O Capacity & Signal Levels Built-In I/O: Yes; Smartstix I/O: Yes via CsCANVoltage, Max: 28 Vdc

Specifications

SKUCS5802709
MPNHE-XT105
