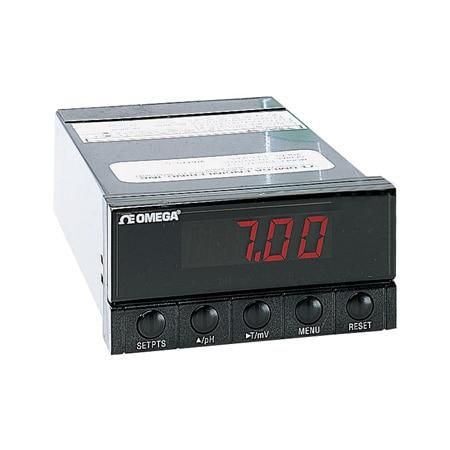

Omega PHCN-37
SKU: CS5802132MPN: PHCN-37
⅛” DIN Panel Mount pH Controller
Product Details
- Microprocessor-Based Versatility
- High and Low Alarm Setpoints
- Scalable 4 to 20 mA, 0 to 20 mA or 0 to 10 V Output
- Compact Panel Design
Attributes
| Width | 96 mm |
| Height | 48 mm |
| Length | 177 mm |
| Weight | 580 g |
| Accuracy | ± 1 mV |
| Series ID | PHCN37-Series |
| Relay Note | 2 From “C” on/off relays. Configurable for latched and unlatched by software. |
| Resolution | 0.1, 1 mV |
| pH Accuracy | ± 0.03 pH |
| Display Size | 13.7 mm (0.54 in) |
| Display Type | 4 Digit LED |
| Relay Output | “C” on/off relays |
| Output Detail | 4 to 20 mA, 0 to 20 mA or 0 to 10V (scalable) software selectable |
| Supply Voltage | 115 Vac |
| Impedance Input | >10¹² Ω |
| Calibration Note | pH Calibration modes: 2 or 3 point |
| Number of Relays | 2 |
| Country of Origin | Mexico |
| Cutout Dimensions | 45 x 92 mm |
| Decimal Selection | 3-Position, Autoranging |
| Electrical Output | 4 to 20 mA |
| PH Measurement Range | 0 to 14.00 pH |
| Additional Features 1 | ⅛” DIN, ORP, Sensors Sold Separately |
| Measurement Resolution | pH: 0.01 |
| Temperature Resolution | 0.1 °C |
| Temperature Sensor Type | 100 Ω or 1000 Ω RTD |
| Process Temperature, Max | 0 °C |
| Process Temperature, Min | 100 °C |
| Sensor-Transducer Connection | pH/ORP-BNC; Temperature -Terminal Strip |
Specifications
| SKU | CS5802132 |
|---|---|
| MPN | PHCN-37 |
