Omega SA3-K
SKU: CS5800494MPN: SA3-K

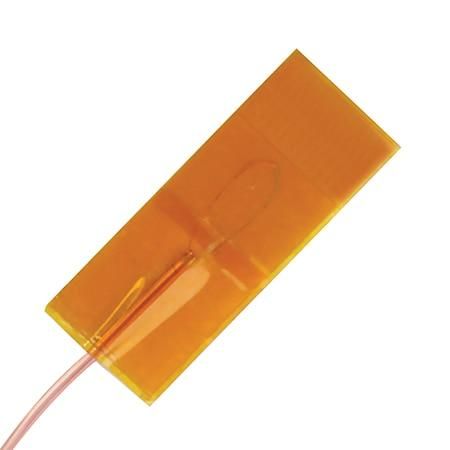

Self-Adhesive Polyimide Fast Response Surface Thermocouples - High Temp
Product Details
- Polyimide Carrier
- Self-Adhesive Backing
- Low Mass Junction Area for Fast Response
- Resistant to many Chemicals and Oils
Attributes
| Series ID | SA3 |
| Insulation | PFA |
| Wire Gauge | 30 AWG |
| Cable Length | 40 in |
| Sensor Width | 0.38 in |
| Junction Type | Ungrounded |
| Sensor Height | 0.02 in |
| Sensor Length | 1 in |
| Cable Diameter | 0.04 in |
| Country of Origin | United States |
| Alloy Material (+) | Chromel |
| Alloy Material (-) | Alumel |
| Color Code Standard | ANSI |
| Additional Features 1 | None |
| Electrical Connection | Stripped Leads |
| Insulation Resistance | 100 MΩ |
| Temperature Sensor Type | Thermocouple Type K |
| Process Temperature, Max | 260 °C |
| Process Temperature, Min | -17 °C |
| Connector Temperature, Max | 180 °C |
| Connector Temperature, Min | -29 °C |
| Insulation Resistance Note | 100 MΩ minimum at 100 Vdc at room temperature and sensor mounted to surface |
Specifications
| SKU | CS5800494 |
|---|---|
| MPN | SA3-K |
