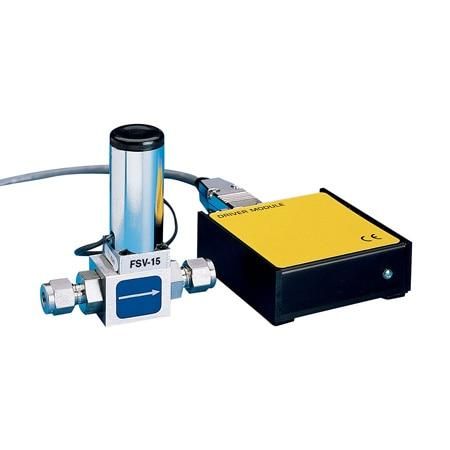

Omega FSV15

Name: Omega FSV15
Brand: Omega
SKU: CS5799964
Price: 1082.02 USD
Availability: OutOfStock

SKU: CS5799964MPN: FSV15

100:1, ¼” Compression, 316ss, Electronic Proportioning Valves

$1,082.02

Unit

Available on backorder

Quantity

remove

add

Documents

Width	3 in
Height	1 in
Length	3 in
Approvals	RoHS, CE
Cv Factor	0.24 gal/min
Series ID	FSV10-Series
Valve Type	normally closed
Valve Width	1 in
Cable Length	8 in
Orifice Size	0.125 in
Valve Height	3.45 in
Valve Length	3.25 in
Air Flow, Max	100000 ml/min
Response Time	500ms
Approvals Note	EMC Directive 89/336/EEC EN55011:1991; Group 1, Class A EN50082-2:1995
Flow Rate Note	Based on 10 psig (690 mbar) differential pressure.
Supply Voltage	12 to 30 Vdc
Turndown Ratio	100:1
Water Flow, Max	2873 ml/min
Country of Origin	United States
Materials, Wetted	316 Stainless Steel, 416 Stainless Steel, FKM
Supply Power Note	12 to 30 Vdc, 1 A @ 12 Vdc; 0.5 A @ 24 Vdc via 9-pin D connector or DC power jack
Input Control Signal	0 to 5 Vdc, 4 to 20 mA
Electrical Connection	9 - Pin D Connector
Leak Rate Under Vacuum	less than 10^⁻9 cc He/s
Operating Pressure, Max	500 psi
Process Connection Size	¼ in
Process Connection Type	Compression Fitting
Process Temperature, Max	54 °C
Process Temperature, Min	-10 °C
Surface Temperature, Max	54 °C
Measurement Pressure Type	Differential
Differential Pressure, Max	35 psi
Operating Temperature, Max	50 °C
Operating Temperature, Min	0 °C

SKU	CS5799964
MPN	FSV15
