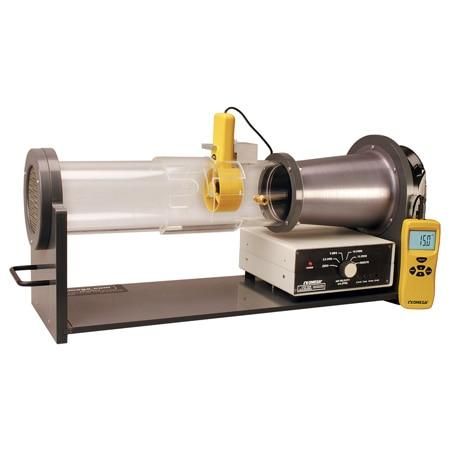

Omega WTM-1000
SKU: CS5799172MPN: WTM-1000
15 m/s Open Loop Benchtop Wind Tunnel w/ 11.3”L x Ø4” Test Chamber
Product Details
- 4 Selectable Air Speeds: 2.5 m/s (492 fpm) 5.0 m/s (984 fpm) 10 m/s (1969 fpm) 15 m/s (2953 fpm)
- Accuracy of 1% of Setting or 0.1 m/s, Whichever is Larger
- Remote Option for Variable Air Speed
- Accommodates Either Hot-Wire or Vane-Type Anemometers
Attributes
| Width | 20.3 cm |
| Height | 29.2 cm |
| Length | 68.5 cm |
| Weight | 8.2 kg |
| Accuracy | ± 1 % |
| Diameter | 10 cm |
| Series ID | WTM-1000-Wind-Tunnel |
| Motor Voltage | 24 Vdc |
| Flow Rate Note | 2.5 m/s (492 fpm), 5.0 m/s (984 fpm), 10 m/s (1969 fpm), 15 m/s (2953 fpm) |
| Supply Voltage | 90 to 250 Vac |
| Accuracy Detail | ±1% of setting or ±0.1 m/s, whichever is larger |
| Country of Origin | United States |
| Supply Power Note | 90 to 250 Vac @ 50/60 Hz |
| Motor Voltage Note | 24 Vdc @ 1.1 A (26 W) |
| Operating Humidity | 0 to 80% RH |
| Set Point Adjustment | 10-turn pot |
| Additional Features 1 | NIST Cert |
| Linear Flow Rate, Max | 15 m/s |
| Linear Flow Rate, Min | 2.5 m/s |
| Operating Temperature, Max | 45 °C |
| Operating Temperature, Min | 5 °C |
Specifications
| SKU | CS5799172 |
|---|---|
| MPN | WTM-1000 |
