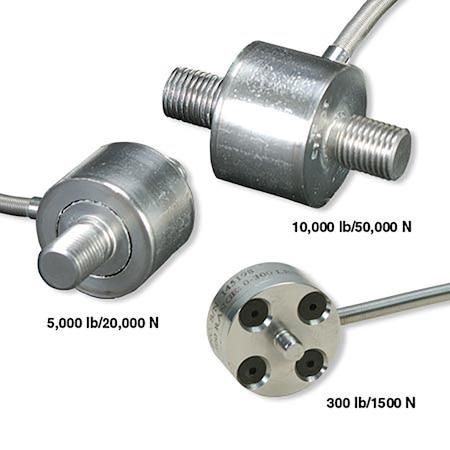

Omega LC202-300
SKU: CS5798545MPN: LC202-300
1” to 1.38” Diameter, Threaded, Miniature Inline Load Cells
$1,218.44
UnitAvailable on backorder
Product Details
- Miniature Package for Test Stands and Difficult Locations
- Rugged, Heavy Duty Construction
- Dual Mounting Studs for Easy Installation
- 5-Point Calibration with 59 kOhm Shunt Cal Data
Attributes
| Height | 1 in |
| Accuracy | ± 0.25 % |
| Linearity | ± 0.25% |
| Materials | Stainless Steel |
| Series ID | LC202 |
| Force Type | Compression, Tension |
| Hysteresis | ± 0.25% |
| Cable Length | 5 ft |
| Overload, Max | 300% FS |
| Repeatability | ± 0.25% |
| Safe Overload | 150% FS |
| Load Cell Type | In-line |
| Outer Diameter | 1 in |
| Supply Voltage | 10 Vdc |
| Input Resistance | 360 Ω min |
| Country of Origin | United States |
| Electrical Output | 2 mV/V |
| Enclosure Ratings | IP65 |
| Output Resistance | 350 ± 10 Ω |
| Supply Power Note | 10 Vdc, 15 Vdc maximum |
| Calibration Option | 5 POINT NIST |
| Load Cell Capacity | 300 lbF |
| Zero/Balance Error | ± 2% |
| 5-Point Calibration | 0%, 50%, 100%, 50%, 0% |
| Thermal Span Effect | 0.009% FSO/°C |
| Thermal Zero Effect | 0.009% FSO/°C |
| Electrical Connection | Cable |
| Wiring/Connector Table | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input |
| Process Temperature, Max | 71 °C |
| Process Temperature, Min | 16 °C |
| Operating Temperature, Max | 121 °C |
| Operating Temperature, Min | -54 °C |
Specifications
| SKU | CS5798545 |
|---|---|
| MPN | LC202-300 |
