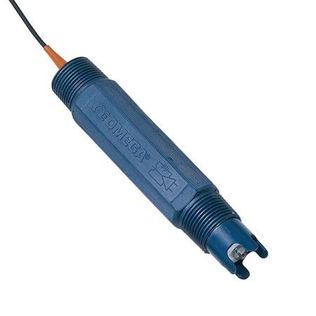

Omega PHE-7352-15
SKU: CS5798525MPN: PHE-7352-15
Heavy-Duty Combination pH Sensor For Submersible Applications
$309.94
UnitAvailable on backorder
Product Details
- Strong PPS Body
- Low Maintenance
- Short or Long Insertion Lengths
- Any Angle Orientation
Attributes
| Drift | <2 mV per week |
| Length | 0 mm |
| Diameter | 0 mm |
| Impedance | 150 MΩ |
| Series ID | 7352-3-Series |
| Applications | Agricultural & Hydroponics Applications, Chemicals, Environmental Monitoring, Food and Beverage, Mining & Metallurgy, Pharmaceuticals, Power Plants & Boilers, Pulp & Paper Industry, Water Treatment |
| Cable Length | 4.6 m |
| Sodium Error | Less than 0.05 pH in 0.1 Molar Na+ ion @ 12.8 pH |
| Pressure Note | 0 to 100 psig or 0 to 150 psig (HT high temperature version) β ±0.1% over full range |
| Response Time | 95% of reading in 10 sec |
| Reference Cell | Double junction, KCl/AgCl, KNO3 |
| Measurement Type | pH |
| Temperature Note | 0 to 80°C (32 to 176°F) or 0 to 110°C (32 to 230°F) (HT high temperature version) |
| Construction Type | Heavy-duty pH electrode |
| Country of Origin | United States |
| Enclosure Material | PPS, PTFE, FKM, Glass |
| Zero/Balance Error | 7.0 ±0.2 pH |
| PH Measurement Range | 0 to 14.00 pH |
| Process Connection Size | ¾ in |
| Process Connection Type | NPT Male |
| Process Temperature, Max | 80 °C |
| Process Temperature, Min | 0 °C |
| Measurement Pressure, Max | 100 psig, 100 psi |
| Measurement Pressure, Min | 0 psig, 0 psi |
Specifications
| SKU | CS5798525 |
|---|---|
| MPN | PHE-7352-15 |
