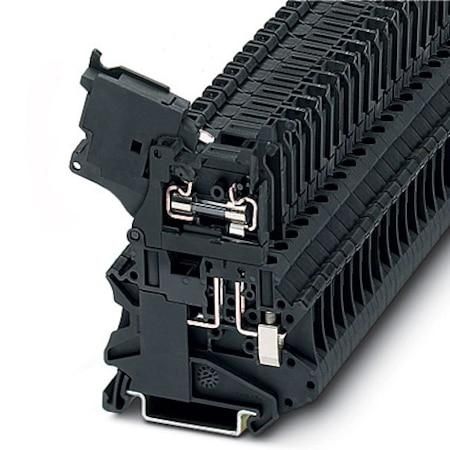

Omega XBUT6FBNL250

Name: Omega XBUT6FBNL250
Brand: Omega
SKU: CS5796833
Price: 27.73 USD
Availability: OutOfStock

SKU: CS5796833MPN: XBUT6FBNL250

FUSE BLOCK W/ LIGHT

$27.73

Unit

Available on backorder

Quantity

remove

add

Documents

Fuse Terminal Block with LED, 0.5 A to 2.5 A, 110 V to 250 V, 24 AWG to 8 AWG, 8.2 mm (0.32 “), Black, 10 mm (0.39 “), XBUT-F Series, Each

Length	56.8 mm
Series ID	XBUT-F
Thread Type	Metric
Amperage, Max	0 A
Color Options	Black
Terminal Width	8.2 mm
Voltage Rating	110 to 250 Vac
Wire Size, Max	6 mm²
Load Current, Max	10 A
Tightening Torque	13.3 to 15.9 Nm
Circuit Protection	6.3 x 32 mm fuse
Cross-Section Area	10 mm²
V/A/AWG Compliance	Voltage Rating (UL-cUL Ratings)=400 V;Amperage, Max (IEC 60 947-7-1)=0.4167 A;Amperage, Max (UL-cUL Ratings)=610 A;Wire Gauge (IEC 60 947-7-1)=24 to 8 AWG;Wire Gauge (UL-cUL Ratings)=24 to 8 AWG
Contamination Class	3
Rated Surge Voltage	4 kV
Additional Features 1	Wide Fuse Terminal Block with LED, 110 to 250 V
Compatible Wiring Note	Stranded with Ferrule=0.25 - 4 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 2.5 mm²;Stranded with Ferrule with Plastic Sleeve=0.25 to 4 mm²;Solid=0.14 - 1.5 mm²
Insulation Strip Length	10 mm
