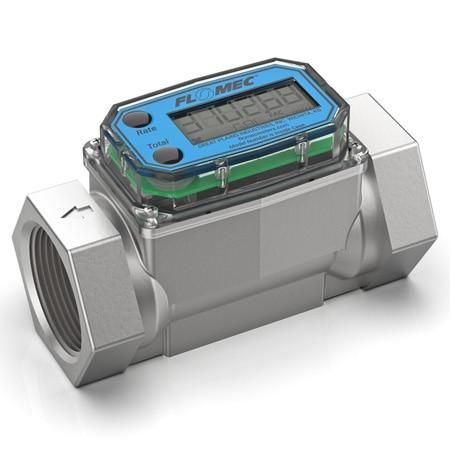

Omega G2S15NQ9GMB
SKU: CS5796607MPN: G2S15NQ9GMB
Rate \& Total Turbine Flow Meters w/ Intrinsically Safe Display
Product Details
- Both Rate and Total Indication
- Percent Reading Accuracy
- 6-Digit Display
- FM Approved (Standard unit only)
Attributes
| Width | 2.7 in |
| Height | 2.6 in |
| Length | 5.3 in |
| Accuracy | ± 1 % |
| K-Factor | 215 pulses/gal |
| Approvals | CE,FM, ATEX |
| Materials | 316 Stainless Steel |
| Series ID | FTB790-Series |
| Display Type | LCD |
| Repeatability | ±0.1% |
| Certifications | NIST Traceable Calibration |
| Calibration Note | Gallons Per Minute (Gallons Default) |
| Country of Origin | United States |
| Electrical Output | 36 to 360 Hz |
| Enclosure Ratings | IP65, NEMA Type 4 |
| Materials, Wetted | 316 Stainless Steel, Alumina Ceramic, FKM, PVDF, Tungsten Carbide |
| Media Compatibility | Liquids |
| Operating Pressure, Max | 1500 psi |
| Process Connection Size | 1 ½ in |
| Process Connection Type | NPT Female |
| Volumetric Flow Rate, Max | 100 GPM |
| Volumetric Flow Rate, Min | 10 GPM |
| Operating Temperature, Max | 54 °C |
| Operating Temperature, Min | -18 °C |
Specifications
| SKU | CS5796607 |
|---|---|
| MPN | G2S15NQ9GMB |
