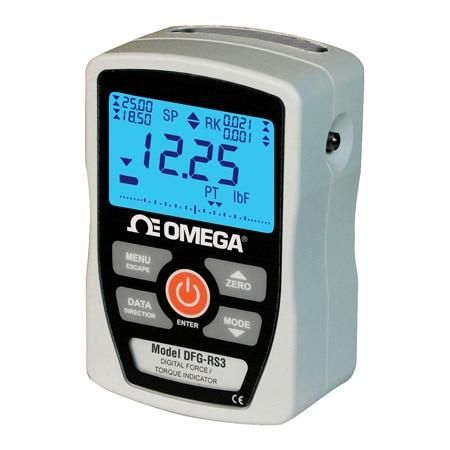

Omega DFG-RS3
SKU: CS5794751MPN: DFG-RS3
Digital Gauge
Product Details
- Interchangeable Force and Torque Sensors
- High Speed 2000 Hz Sampling rate
- Ultra-Compact Size
- 4 Selectable Units of Measure
Attributes
| Width | 2.53 in |
| Height | 3.9 in |
| Length | 1.5 in |
| Weight | 0.7 lb |
| Accuracy | ± 0.2 % |
| Baud Rate | 115200 |
| Series ID | DFG-RS3-Series |
| Force Type | Compression, Tension |
| Display Note | Large Backlit Graphics Display |
| Display Type | LCD |
| Configuration | Digital filters, USB output, automatic shutoff, default settings, key tones, audio alarms, calibration |
| Data Interface | USB |
| Load Cell Type | S-beam |
| Number of Digits | 5 |
| Country of Origin | United States |
| Relative Humidity | 96% non-condensing maximum |
| Supply Power Note | 8.4V NiMH Rechargeable Battery or By an AC Adapter (Batteries and Adaptor Included) |
| Supply Power Type | AC, Battery |
| Additional Features 1 | Indicator |
| Battery Size and Type | NiMh |
| Display Measuring Units | gF, kgF, kgFm, kgFmm, kN, lbF, lbFin, N, Ncm, Nm, ozFin |
| Operating Temperature, Max | 38 °C |
| Operating Temperature, Min | 5 °C |
Specifications
| SKU | CS5794751 |
|---|---|
| MPN | DFG-RS3 |
