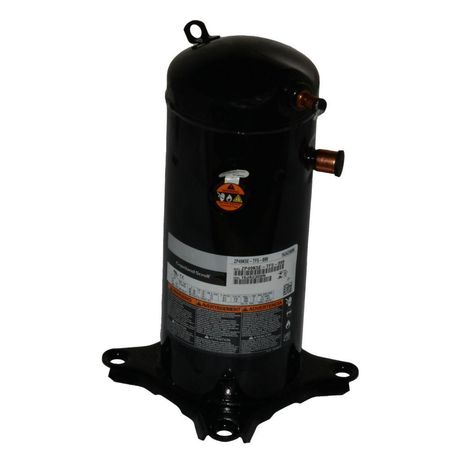

Carrier ZP49K5E-TF5-899

Name: Carrier ZP49K5E-TF5-899
Brand: Carrier
SKU: CS5786246
Availability: OutOfStock

SKU: CS5786246MPN: ZP49K5E-TF5-899

COMPRESSOR(230V)

Product Details

Amps	9.9
Phase	Three
Voltage	200-220/200-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	49,700
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-410A
Displacement	2.83 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	71
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	731 lbs./hr.; 816 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	15.9
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	70°F
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	110
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
