Process InstrumentationOmega

Omega PXM359-350GI

SKU: CS5750412MPN: PXM359-350GI

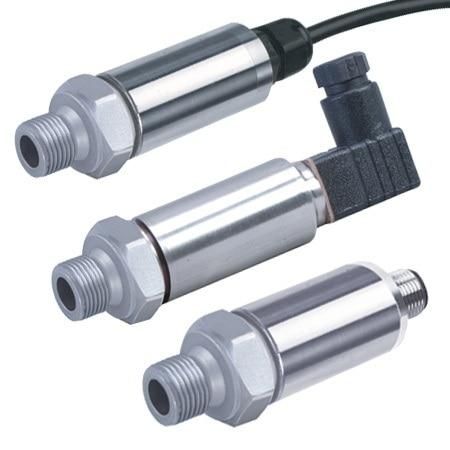

Metric, General Purpose, Stainless Steel Pressure Transducers

Omega PXM309-0.07G10V, PXM309-0.07GI, PXM309-0.14G10V, PXM309-0.14GI, PXM309-0.35AI, PXM309-0.35G10V, PXM309-0.35GI, PXM309-001A10V, PXM309-001AI, PXM309-001CG10V, PXM309-001CGI, PXM309-001G10V, PXM309-001GI, PXM309-001V10V, PXM309-001VI
$482.41
Unit
Available on backorder
remove
add

Product Details

  • 5-Point Traceable Calibration Certificate
  • High Accuracy, ±0.25% FS BSL (Linearity, Hysteresis and Repeatability)
  • 1% Total Error Band on Most Ranges
  • Reverse Polarity and Over Voltage Protected

Attributes

Shock 50 g, 11 ms half sine
Weight 150 g
Accuracy ± 0.25 %
Bandwidth DC to 1 kHz
Series ID PXM309
Stability ± 0.25%
Vibration ± 20 g
Output Signal Current
Response Time 1 ms
Accuracy Class 0.1% to 0.25%
Burst Pressure 2x Full Scale
Stability Note Long Term Stability (1 yr): ± 0.25% FS
Supply Voltage 15 to 30 Vdc
Accuracy Detail Static Accuracy 350 mB to 700 bar: ± 0.25% FS BSL at 25ºC (includes linearity, hysteresis and repeatability)
Pressure Cycles 10 million
Country of Origin China
Electrical Output 4 to 20 mA
Enclosure Ratings IP65
Materials, Wetted 17-4 Stainless Steel
Supply Power Note 15 to 30 Vdc at 10 mA
Burst Pressure Note 5X rated pressure
Electrical Connection M12 4 pin Female
Insulation Resistance 1 MΩ
Electrical Output Note 4 to 20 mA: 9 to 30 Vdc
Process Connection Size ¼ in
Process Connection Type BSPP Male
Measurement Pressure Type Gauge
Measurement Pressure, Max 350 bar
Measurement Pressure, Min 0 bar
Electrical Connection Note M12 4-pin connector
Operating Temperature, Max 85 °C
Operating Temperature, Min -40 °C
Compensated Temperature, Max 85 °C
Compensated Temperature, Min -20 °C
Thermal Effect on Span error, Max ± 1% gage
Thermal Effect on Zero error, Max ± 1% gage

Specifications

SKUCS5750412
MPNPXM359-350GI
