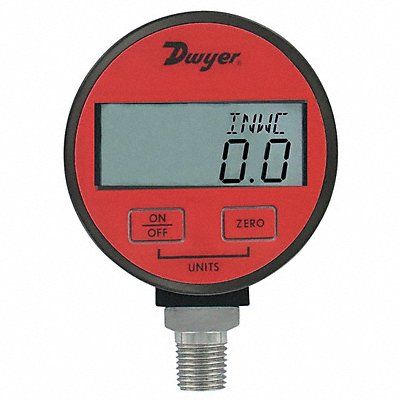

Dwyer DPGA-08
SKU: CS5730333MPN: DPGA-08Alternate Part #: 102039-08
DPGA-08 100 PSIG
$152.75
UnitAvailable on backorder
Product Details
Digital Industrial Pressure Gauge Accuracy +/-1.00 Percent Gauge Case Material ABS Nominal Dial Size 2 ½ in IP/NEMA Rating Not Rated Hazardous Location Rating Not Rated Compatible Process Media Air and Compatible Gases Sensor Material Silicone Socket Material 316L Stainless Steel Process Connection Type NPT Display Units bar cm wc ft wc in Hg in wc kg/sq cm kPa mbar mm Hg oz/sq in psig Process Connection Gender Male Battery Type 9V Battery
Attributes
| Accuracy | ±1.0% F.S. (Includes linearity, hysteresis, repeatability.) |
| Auto Shut Off | 20 minute auto shut-off. |
| Commodity Code | 1802 |
| Display | 4-digit LCD (.425” H x .234” W digits). |
| Housing Material | ABS plastic. |
| Power Requirement | 9 V alkaline battery, included, user replaceable. |
| Pressure Limit | 2X pressure range. Vacuum range max. pressure is 30 psig. |
| Process Connection | ¼” male NPT. |
| Service | DPGA: air and compatible gases; DPGW: liquids and compatible gases. |
| Size | 2.62” OD x 1.52” deep. |
| Thermal Effect | 0.05% FS/°F. |
| Wetted Material | DPGA: 316L SS, silicone sensor; DPGW: 316L SS. |
Specifications
| SKU | CS5730333 |
|---|---|
| MPN | DPGA-08 |
| Alternate Part # | 102039-08 |
