Dwyer SFI-100-3/8
SKU: CS5729480MPN: SFI-100-3/8Alternate Part #: 120001-02
SFI-100-⅜” NPT
$206.70
UnitAvailable on backorder
Product Details

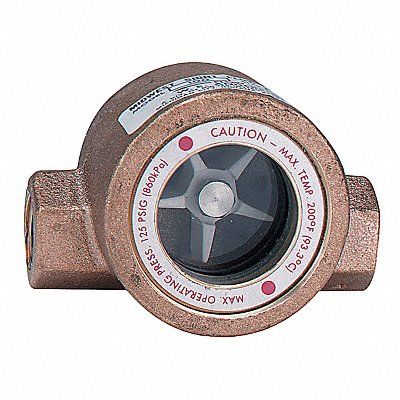

Window Sight Flow Indicator with Impeller Bronze Body Material Pipe Size ⅜ in Connection Type FNPT Number of Windows 1 Tempered Glass Sight Material Sight Dia 1 21/32 in Overall Length 3 in Max Pressure 125 psi Temp Range 32 Degrees F to 200 Degrees F Buna-N and Fiber Seal Material
Attributes
| Commodity Code | 8300 |
| Connection | Threaded. |
| Connections | Threaded. |
| Pressure Limit | 125 psig (8.62 bar), 150 psig (10.34 bar) on “MP” Models. |
| Service | Compatible gases and liquids. |
| Temperature Limit | 200°F (93°C); 120°F (48°C) on W2 option; 170°F (77°C) on I1 option. |
| Wetted Material | Window: tempered glass; Body: bronze or 316 SS; Gasket: Buna-N, fluoroelastomer or PTFE; Indicator: ABS or 316 SS impeller (100 and 300), 304 SS or 316 SS flapper (360). |
Specifications
| SKU | CS5729480 |
|---|---|
| MPN | SFI-100-3/8 |
| Alternate Part # | 120001-02 |
