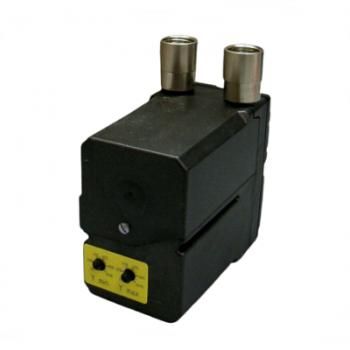

Dungs 267252

Actuator Motor DMA 12C120

The DMA Actuator drives CCW from 0 to 90 degrees via 4-20 mA input signal. The DMA is available in three different fixed speeds: 6, 12, and 30 seconds. When mounted, it is used to automatically modulate the amount of natural gas, butane, propane and/or air supplied to the burner.

PART NUMBER HAS BEEN CHANGED - OLD PART NUMBER #46050-2

• 12 Second
• 90 Deg Stroke
• 25 in-lb torque
• 120 Vac
• 50/60Hz
• 20Va
• NEMA Type 1
