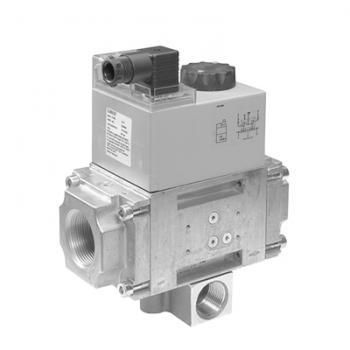

Dungs 267047

DMV-DLE 702/604L with VLA

Dungs 267047 Dual Modular Valve DMV-DLE 702/604L with Vent Line Adapter

The Dual Modular Valves with Vent Line Adapter (DMV-VLA) combines two safety shutoff valves in one compact housing with a factory installed vent line connection between the two safety valves.

• DMV-D series contain two fast opening and fast closing safety shutoff vavles, and max. flow adjustment to vary the flow.

• DMV-DLE series have an extra feature. Valve two is a slow-opening valve.

• DMV valves ending /622, /624L and /612 have proof of closure.

• DMV valves ending in L are rated as NEMA Type 4.

• DMV ZR series valves have two stage operation.

Directly mounting the following accessories creates a compact valve train without additional piping:

- Pressure regulator

- High and low gas pressure switches

- Valve proving system

- DMK Butterfly control valve

The DMV-VLA is recommended for industrial and commercial heating applications that require two safety shutoff valves with a vent line connection between the safety shutoff valves. The DMV-VLA is suitable for dry natural gas, propane, butane, air and inert gases. A “dry” gas has a dew point lower than +15 °F and its relative humidity is less than 60 %.

Former Karl Dungs Inc Part Number 240-805V
