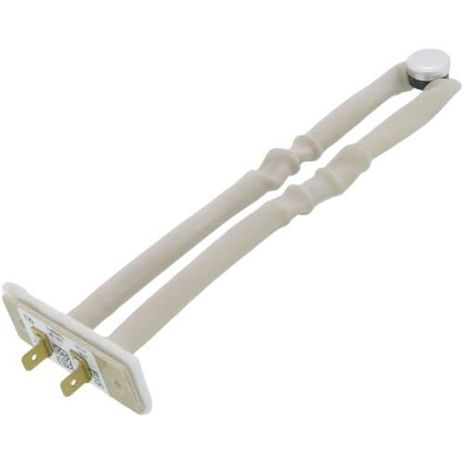

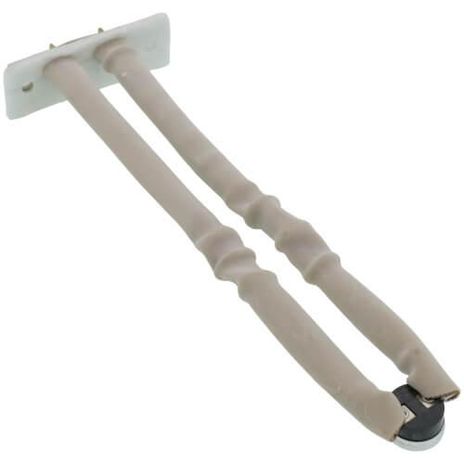

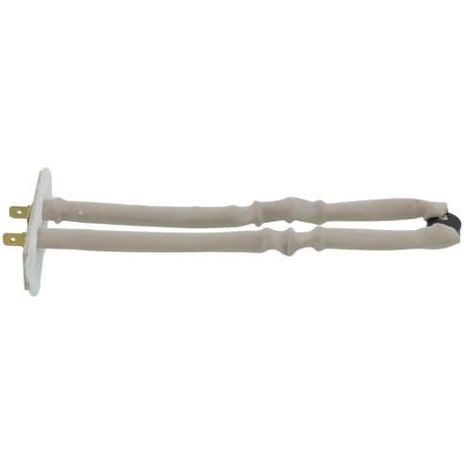

Trane SWT03031
SKU: CS5545023MPN: SWT03031
High Limit Switch (190° Open, 160° Close)
Contact us for pricing and availability
Product Details
High Limit Switch (190° Open, 160° Close)
Attributes
| Mounting Type | Board/Surface Mount |
| Enclosure Type | Not Available |
| Type | Thermal Limit Switch |
| Standards | UL and CSA Recognized |
| Temperature Rating | 190 Deg. F |
| Current Rating | 5.8 FLA, 34.8 LRA at 120V AC; 200 MA at 24V AC (Min.); 1.5 A at 24V AC (Max.) |
| Voltage (Vac) | 120V |
| Number Of Poles | 1.0 |
| Contact Arrangement | SPST |
| Mount | Board/Surface Mount |
| Locked Rotor Current (A) | 34.8 |
| Terminal Type | Quick Connect |
| Function | Auto Reset |
| Terminal Material | Pre-Plated Ni-Zn (Nickel-Zinc) Coat |
| Current Rating (Fla) | 5.8 |
| Open Temperature (Deg F) | 190.0 |
| Switch Tolerance (Deg F) | ±6 Open; ±10 Close |
| Reset Temperature (Deg F) | 160.0 |
| Life Cycle | 100,000 |
Specifications
| SKU | CS5545023 |
|---|---|
| MPN | SWT03031 |
