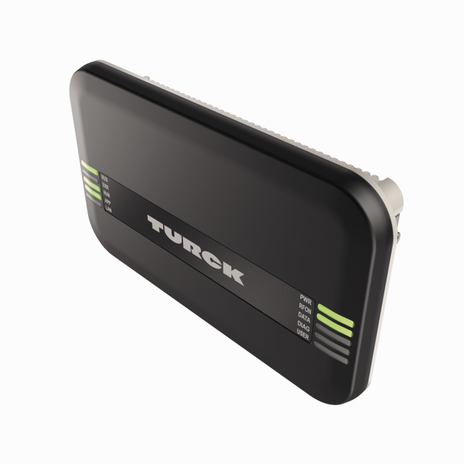

Turck TN-UHF-Q180L300-NA-LNX
SKU: CS5505360MPN: TN-UHF-Q180L300-NA-LNXAlternate Part #: 100000936UPC/EAN: 4047101445480
$3,298.03
UnitAvailable on backorder
Product Details
UHF Reader
- TCP/IP
- Freely programmable Ethernet-based read/write head based on Linux
- Programming language C, C++, NodeJS, Python
- Software components: SSH, SFTP, HTTP, IBTP, MTXP, DHCP, SNTP, Node.js 6.9.5 (LTS), Python 3.x
- Implementation of the protocol is required
- 4 RP-TNC connections for passive, external UHF antennas
- 4 digital channels, configurable as PNP inputs and/or 0.5 A outputs
- 10 Mbps/100 Mbps transfer rate
- Integrated web server
- LED displays and diagnostics
- Device only suitable for operation in North America (NA) at 902…928 MHz (USA, Canada, Mexico)
Attributes
| Ambient Temperature | -20…+50 °C |

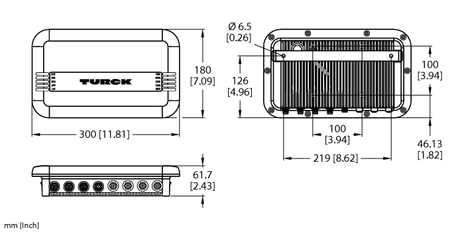

| Construction Size | 300 x 180 x 61.7 mm, Q180L300 |
| Customs Tariff Number | 84719000000.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27280401 -/- Identification RFID |
| Fieldbus Protocol | TCP/IP |
| Housing Material | Aluminium, AL, Silver |
| Mounting | Non-flush |
| Protection Class | IP67 |
| Radio Communication And Protocol Standards | ISO 18000-63, EPCglobal Gen 2 |
| Region Uhf | USA, Canada, Mexico (902…928 MHz) |
| Technology | UHF RFID |
Specifications
| SKU | CS5505360 |
|---|---|
| MPN | TN-UHF-Q180L300-NA-LNX |
| Alternate Part # | 100000936 |
| UPC/EAN | 4047101445480 |
You may also like
Turck TN-UHF-Q300-NA-LNX
$3,962.61Unit
Turck TN-UHF-Q180L300-NA-CDS
$3,298.03UnitTurck TN-UHF-Q300-NA-CDS
$4,054.81Unit
Turck PD20-UHF-NA-R
$763.92Unit

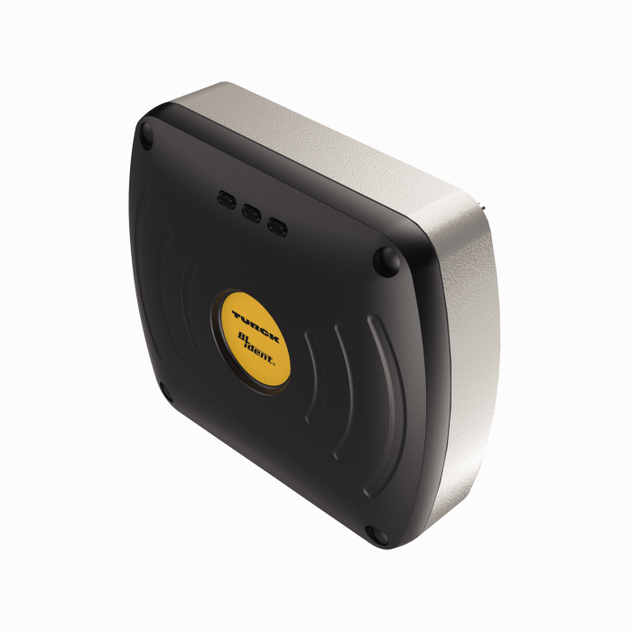

Turck TN902-Q175L200-H1147
