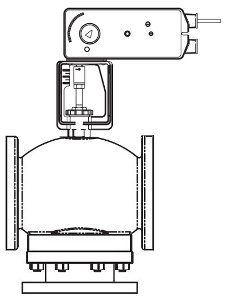

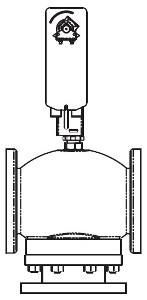

Schneider Electric VS-8303-596-5-15
SKU: CS5490064MPN: VS-8303-596-5-15UPC/EAN: 711426009941
VB: 5 in, 3W Mix/Div, Globe, FLG, UC, BR, 290 cv, 35 PSI, Act (MS61-7203): Elec, Prop, 2-10 VDC/4-20 mAdc, SR, 24 VAC/VDC, App, 220 lbf, Linear, N2
$4,611.97
UnitAvailable on backorder
Product Details
Valve Assembly:
- Body Size: 5 in
- Configuration: 3-Way Mixing/Diverting
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
- Material Trim: Brass
- Flow Coefficient: 290 cv
- Close-Off Pressure: 35 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Force: 220 lbf
- Mechanical Movement: Linear
- Protection Rating: NEMA 2
Assembly Components:
- Valve Body: VB-8303-0-5-15
- Valve Range: Balanced Plug Technology
- Valve Linkage: None, tool-less connection
- Actuator: MS61-7203
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam.
Attributes
| Actuator | linear |
| Product Or Component Type | valve-actuator assembly |
| IP Degree Of Protection | IP11 |
| (Us) Rated Supply Voltage | 22…30 V DC; 24 V AC/DC |
| Switch Function | No |
| Body Material | cast iron |
| Operating Fluid Temperature | -7-138 °C |
| Seat Leakage | Port A: Class III (0.1 %) |
| Seat Material | Port A: brass |
| Control Type | automatic reset |
| Electrical Insulation Class | class II |
| Force lbf | 220 lbf |
| Force N | 979 N |
| Ambient Air Temperature For Operation | -17.7-60 °C |
| Ambient Air Temperature For Storage | -40-71 °C |
| Relative Humidity | 15-95 % non-condensing |
| Material | die cast aluminium: housing |
| Analogue Input Range | 2…10 V DC; 4…20 mA DC |
| Motor Type | brushless DC motor |
| Power Consumption In VA | 9.8 VA AC |
| Power Consumption In W | 7.7 W |
| Current Consumption | 300 mA |
| Hold-In Power Consumption In W | 3.3-3.3 W |
Specifications
| SKU | CS5490064 |
|---|---|
| MPN | VS-8303-596-5-15 |
| UPC/EAN | 711426009941 |
