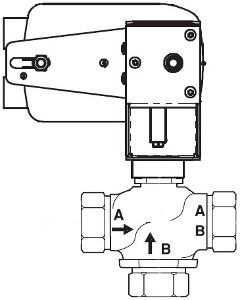

Schneider Electric VS-7323-537-4-11

SKU: CS5490026MPN: VS-7323-537-4-11UPC/EAN: 711426482164

VB: 2 in, 3W Div, Globe, NPT, UO, BR, 40 cv, 25 PSI, Act (MS40-7043-501): Elec, Prop, SR, NC, 24 VAC/VDC, Plen, 35 in-lb, Rotary, SPDT, N2

Schneider Electric VA-7313-536-4-04, VA-7313-536-4-06, VA-7313-536-4-08, VA-7313-536-4-09, VA-7323-536-4-04, VA-7323-536-4-06, VA-7323-536-4-08, VA-7323-536-4-09, VA-7323-536-4-10, VA-7323-536-4-11, VF-7313-536-4-02, VF-7313-536-4-04, VF-7313-536-4-06, VF-7313-536-4-08, VF-7313-536-4-09
$1,091.12
Unit
Available on backorder
remove
add

Product Details

Valve Assembly:

  • Body Size: 2 in
  • Configuration: 3-Way Diverting
  • Type: Globe
  • Connection: NPT
  • Stem Flow Action: Stem up flow B to AB
  • Material Trim: Brass
  • Flow Coefficient: 40 cv
  • Close-Off Pressure: 25 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Up/Retract A closed
  • Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
  • Leads and Connections: 3 ft Plenum
  • Torque: 35 in-lb
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 1 SPDT
  • Protection Rating: NEMA 2

Assembly Components:

  • Valve Body: VB-7323-0-4-11
  • Valve Range: Venta
  • Valve Linkage: AV-611
  • Actuator: MS40-7043-501
  • Actuator Range: SmartX Actuator

Product Alert: Not for use with steam

Attributes

Us Rated Supply Voltage 22…30 V DC 24 V AC/DC
Actuator rotary
Actuator Rotation 95 °
Ambient Air Temperature For Operation -30-60 °C
Ambient Air Temperature For Storage -40-71 °C
Analogue Input Range 2…10 V DC 4…20 mA DC
Body Material bronze
Control Type manual override with 5/32 allen wrench
Electrical Insulation Class class II
Ip Degree Of Protection IP11
Material die cast aluminium: housing
Motor Type brushless DC motor
Operating Fluid Temperature -7-138 °C
Power Consumption In Va 5.6 VA AC
Product Destination dampers globe valve
Product Or Component Type valve-actuator assembly
Relative Humidity 5-95 % non-condensing
Seat Leakage Port A: Class III (0.1 %)
Seat Material Port A: bronze Port B: bronze
Seating Seal Material Port A:metal to metal Port B:metal to metal
Switch Function 1 SPDT
Targeted Region North America.
Taxoclass Id PTC_D54039_XXX

Specifications

SKUCS5490026
MPNVS-7323-537-4-11
UPC/EAN711426482164
