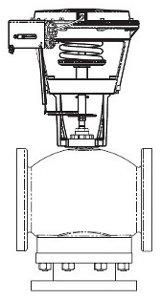

Schneider Electric VK-8303-602-5-15
SKU: CS5489714MPN: VK-8303-602-5-15UPC/EAN: 711426021585
VB: 5 in, 3W Mix/Div, Globe, FLG, UC, BR, 290 cv, 35 PSI, Act (MK-6811): Pneu, Prop, 5-10 PSIG, SR, Air NPT, Linear, N1
$5,597.01
UnitAvailable on backorder
Product Details
Valve Assembly:
- Body Size: 5 in
- Configuration: 3-Way Mixing/Diverting
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
- Material Trim: Brass
- Flow Coefficient: 290 cv
- Close-Off Pressure: 35 PSI
- Actuator Type: Pneumatic
- Control Signal: Proportional
- Control Spring Range: 5 to 10 PSIG
- Loss of Power Type: Spring Return
- Leads and Connections: ⅛ in Air NPT
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
Assembly Components:
- Valve Body: VB-8303-0-5-15
- Valve Range: Balanced Plug Technology
- Valve Linkage: AV-497
- Actuator: MK-6811
Product Alert: Not for use with steam.
Attributes
| Actuator | linear |
| Ambient Air Temperature For Operation | -28.8-104.4 °C |
| Ambient Air Temperature For Storage | -40-104.4 °C |
| Body Material | cast iron |
| Control Type | manual override with 5/32 allen wrench |
| Diaphragm Effective Area | 50 in² |
| Ip Degree Of Protection | IP10 |
| Material | die cast aluminium: housing |
| Operating Fluid Temperature | -7-138 °C |
| Product Destination | globe valve |
| Product Or Component Type | valve-actuator assembly |
| Seat Leakage | Port A: Class III (0.1 %) |
| Seat Material | Port A: brass |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54040_XXX |
Specifications
| SKU | CS5489714 |
|---|---|
| MPN | VK-8303-602-5-15 |
| UPC/EAN | 711426021585 |
You may also like
Schneider Electric VK-8303-602-5-14
$2,933.88UnitSchneider Electric VK-8303-602-5-13
$2,569.70Unit
Schneider Electric VK-8303-602-5-12
$2,629.94Unit
Schneider Electric VK4-8303-602-5-13
$2,409.00UnitSchneider Electric VK4-8303-602-5-12
$1,988.35Unit

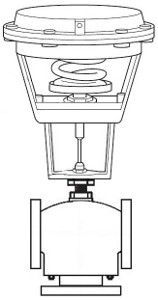

Schneider Electric VK-9313-602-5-14
$2,909.59UnitSchneider Electric VK-9313-602-5-13
$2,486.98Unit

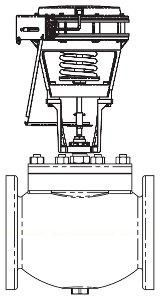

Schneider Electric VK-8223-602-5-15
$3,918.85UnitSchneider Electric VK-9313-602-5-12
$2,523.51Unit

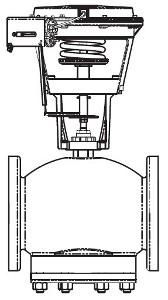

Schneider Electric VK-8213-602-5-15
