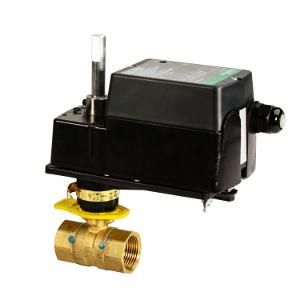

Schneider Electric VF-2313-831-9-03

SKU: CS5489575MPN: VF-2313-831-9-03

VB: ½ in, 3W, Ball, NPT, BR, 1 cv, No Steam, 50 PSI, Act (MF4D-8033-100): Elec, Float, SR, NC, 24 VAC/20-30 VDC, Plen, 30 in-lb, Rotary, N2

Schneider Electric VA-2313-815-9-16, VA-2313-821-9-03, VA-2313-821-9-05, VA-2313-821-9-06, VA-2313-821-9-15, VA-2313-821-9-16, VA-2313-821-9-31, VA-2313-831-9-04, VA-2313-831-9-16, VA-2313-831-9-28, VF-2313-821-9-01, VF-2313-821-9-02, VF-2313-821-9-03, VF-2313-821-9-04, VF-2313-821-9-05
$516.08
Unit
Available on backorder
remove
add

Product Details

Valve Assembly:

  • Body Size: ½ in
  • Configuration: 3-Way Mixing
  • Type: Ball
  • Connection: NPT
  • Material Trim: Brass
  • Flow Coefficient: 1 cv
  • Close-Off Pressure: 50 PSI
  • Actuator Type: Electric
  • Control Signal: Floating
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 24 VAC or 20 to 30 VDC
  • Leads and Connections: 3 ft Plenum
  • Torque: 30 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2

Assembly Components:

  • Valve Body: VB-2313-500-9-03
  • Valve Linkage: Linkage included with valve body
  • Actuator: MF4D-8033-100
  • Actuator Range: SmartX

Product Alert: Not for use with steam.

Attributes

Actuator rotary
Product Or Component Type valve-actuator assembly
IP Degree Of Protection IP11
(Us) Rated Supply Voltage 20…30 V DC; 24 V AC
Switch Function No
Body Material forged brass
Operating Fluid Temperature -7-121 °C
Seat Leakage Port A: Class IV (0.01 %)
Control Type automatic reset
Electrical Insulation Class class II
Ambient Air Temperature For Operation -30-60 °C
Ambient Air Temperature For Storage -40-71 °C
Relative Humidity 15-95 % non-condensing
Actuator Rotation 93 °
Material polymer: housing; PTFE (polytetrafluoroethylene): seal
Motor Type brush DC motor
Power Consumption In VA 6.8 VA AC
Torque Value 30 lbf.in

Specifications

SKUCS5489575
MPNVF-2313-831-9-03
