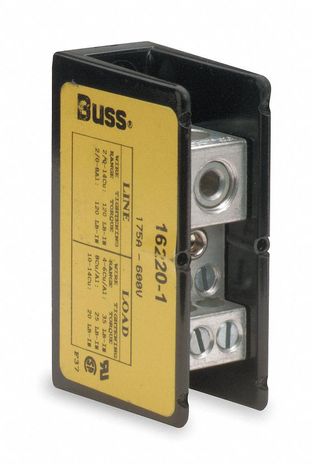

Eaton 16220-1

Min Pwr Dist Block 175A 1P 1P Primary

Miniature Distribution Block Max Amps 175 A Number of Poles 1 Primary Connections/Pole 1 Primary Wire Range (AWG) 14 to 2/0 AWG CU 8 to 2/0 AWG AL Secondary Connection/Pole 4 Secondary Wire Range (AWG) 14 to 4 AWG CU 8 to 4 AWG AL Voltage Rating 600V AC/DC Power Distribution Block Design Open Length 2.88 in Depth 1.75 in Width 1.06 in Standards CSA Class 6228-01 UL 1059
