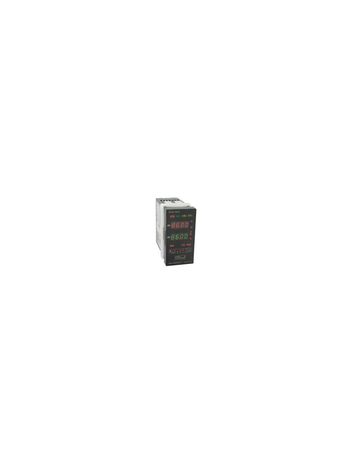

Dwyer 86153-0
SKU: CS542953MPN: 86153-0Alternate Part #: 1008-086153V
MODEL 86153-0 (V)
$1,628.44
UnitAvailable on backorder
Product Details
Temperature/process controller, (1) 0-20 mA output, (1) relay output.
Attributes
| Accuracy | ±0.25% of span, ±1 least significant digit. |
| Agency Approval | CE, cUL, UL. |
| Commodity Code | 0819 |
| Control Output Rating | SSR: 2.5 A at 240 VAC resistive at 77°F (25°C), de-rate to 1.25 A at 130°F (55°C); Relay: SPDT, 10 A at 240 VAC resistive, ½ hp at 120 VAC, ⅓ hp at 240 VAC; Alarm Relay: SPST, 3 A at 240 VAC resistive; Switched Voltage: 15 VDC at 20 mA; Proportional Current: 0-20 mA DC, scalable into 600 ohms maximum. |
| Display | Two 4-digit, 7 segment LED; 0.4” (10 mm) high - horizontal models; 0.3” (7.62 mm) high - vertical models. |
| Front Panel Rating | NEMA 4X (IP66). |
| Input Impedance | Thermocouple: 3 megohms minimum; Voltage: 5000 ohms; Current: 10 ohms; RTD Current: 200µA maximum. |
| Operating Temperature | 14 to 131°F (-10 to 55°C). |
| Selectable Input | Thermocouple, RTD, DC voltage or DC current. |
| Supply Voltage | 100 to 240 VAC nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 VDC, +10%-20%. |
Specifications
| SKU | CS542953 |
|---|---|
| MPN | 86153-0 |
| Alternate Part # | 1008-086153V |
