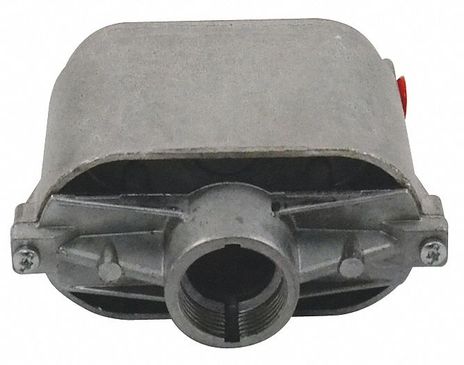

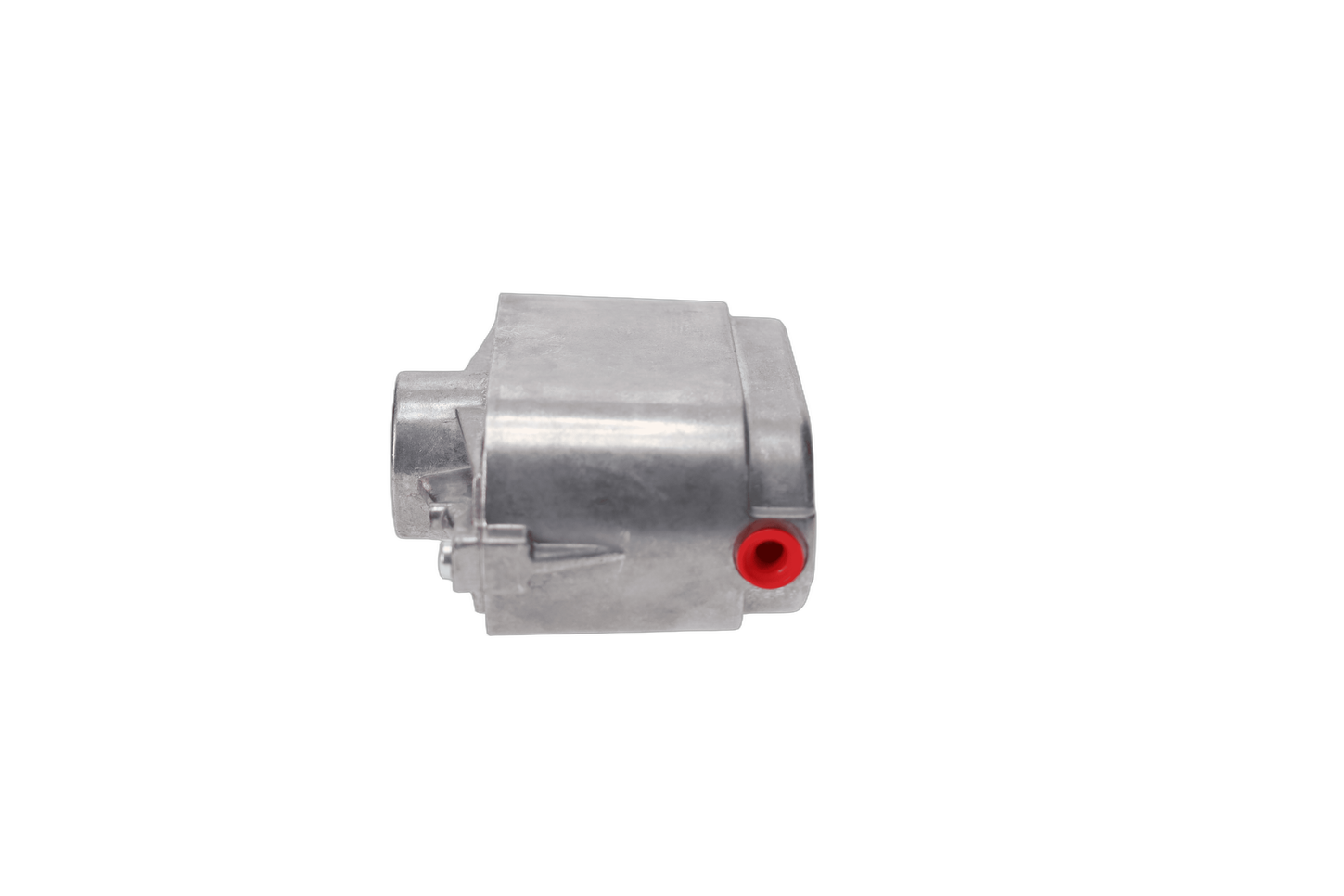

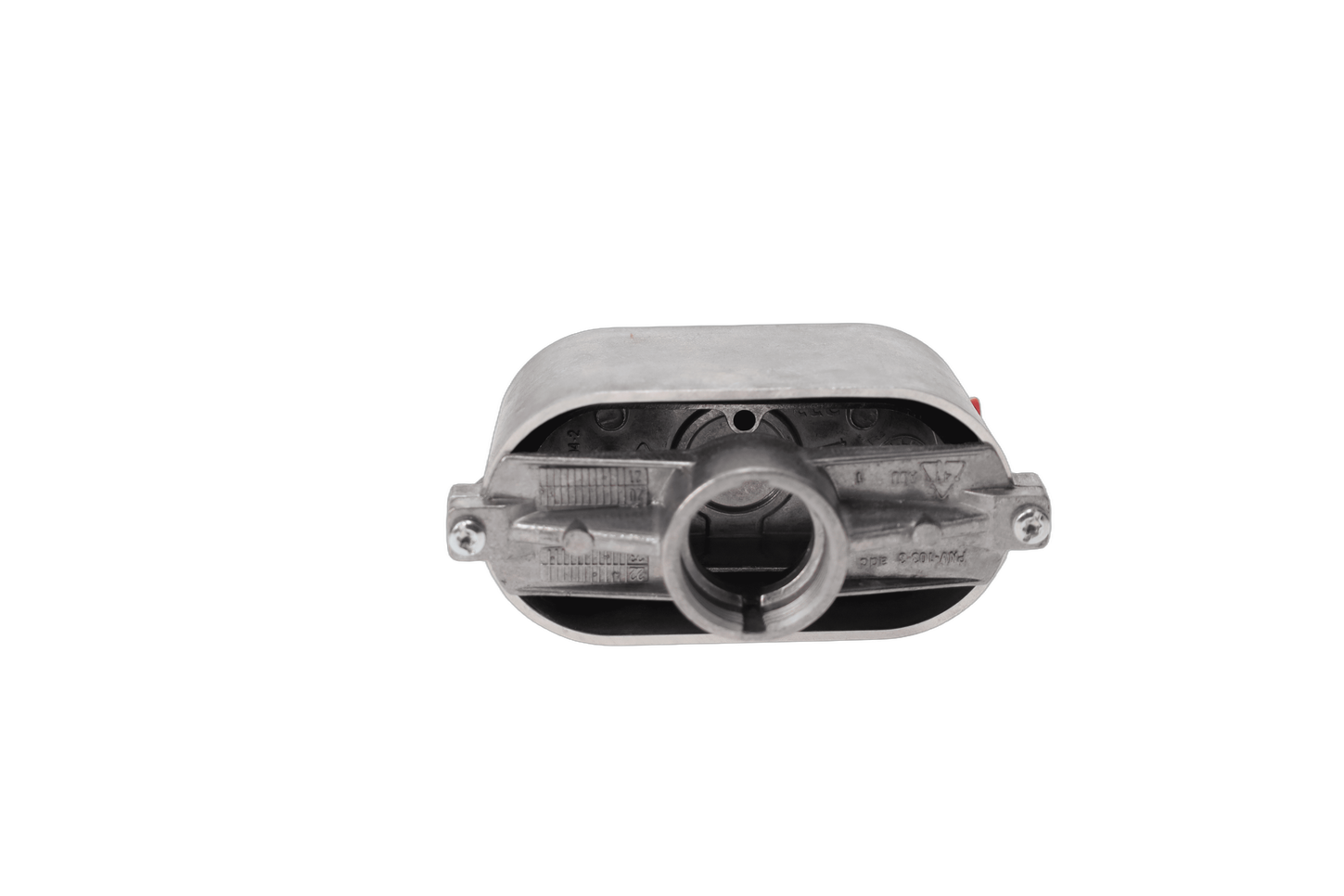

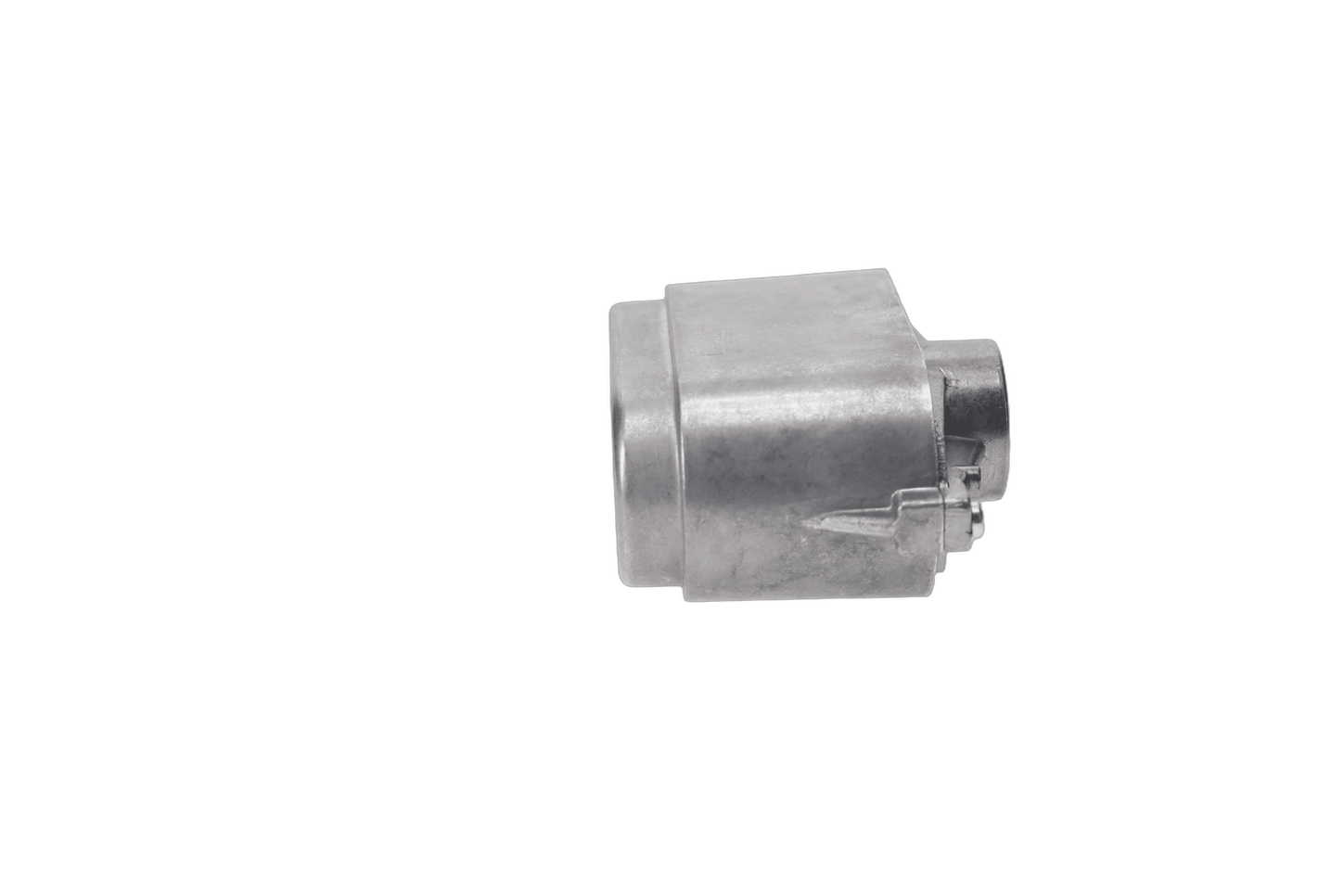

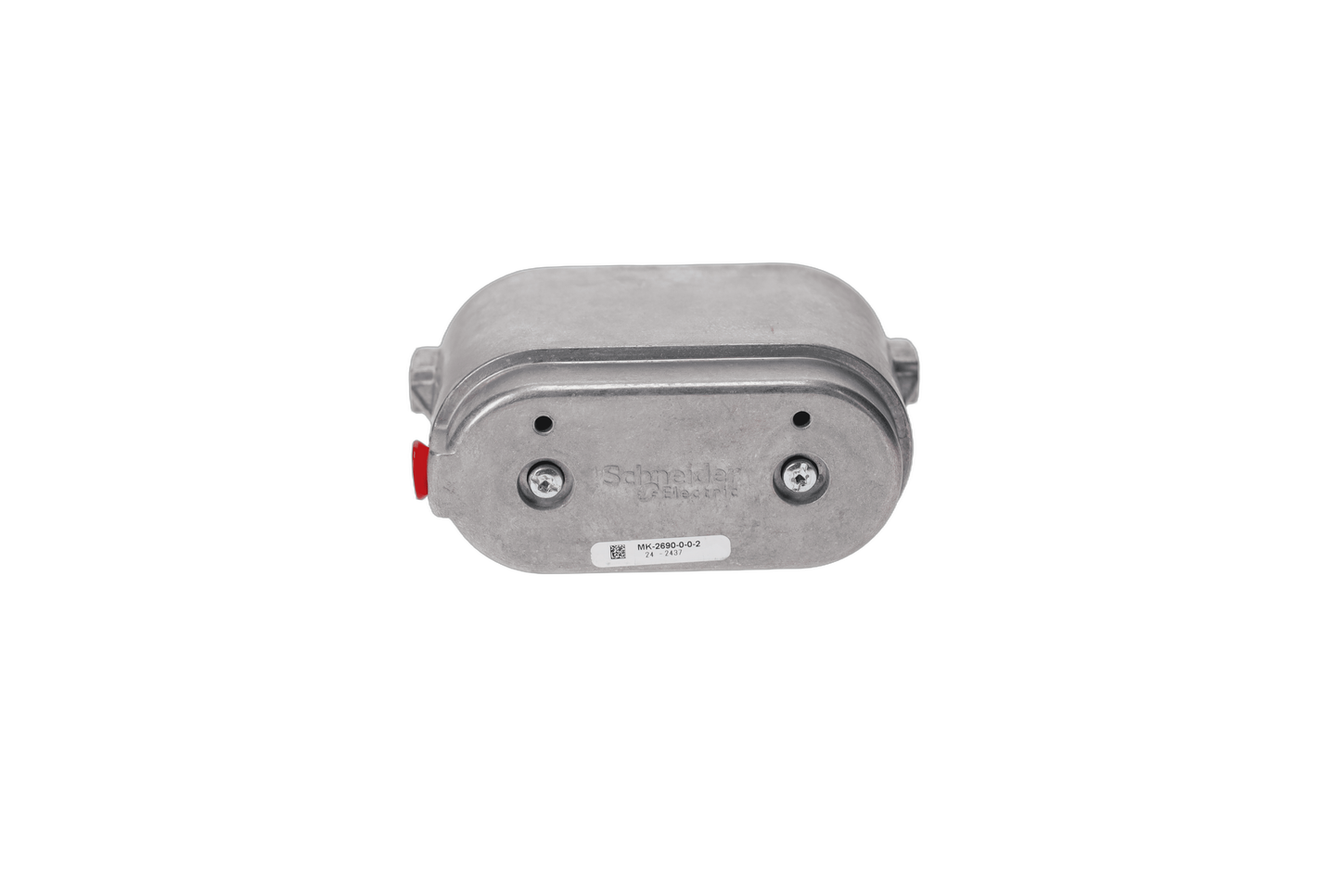

Schneider Electric MK-2690
SKU: CS541978MPN: MK-2690UPC/EAN: 711426530674
Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, Air NPT, Linear, N1
$46.26
Unit152 in stock
Product Details
Actuator: (MK-2690):
- Actuator Type: Pneumatic
- Control Signal: 2-Position (On/Off), Proportional
- Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
- Loss of Power Type: Spring Return
- Leads and Connections: ⅛ in Air NPT
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Series: MK-2690
- Actuator Use: Globe Valves
Attributes
| Actuator | linear |
| Ambient Air Temperature For Operation | -28.8-104.4 °C |
| Ambient Air Temperature For Storage | -40-104.4 °C |
| Control Type | manual override with 5/32 allen wrench |
| Diaphragm Effective Area | 6 in² |
| Ip Degree Of Protection | IP10 |
| Material | die cast aluminium: housing |
| Product Destination | globe valve |
| Product Or Component Type | actuator |
| Relative Humidity | 5-95 % non-condensing |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54058_XXX |
Specifications
| SKU | CS541978 |
|---|---|
| MPN | MK-2690 |
| UPC/EAN | 711426530674 |
