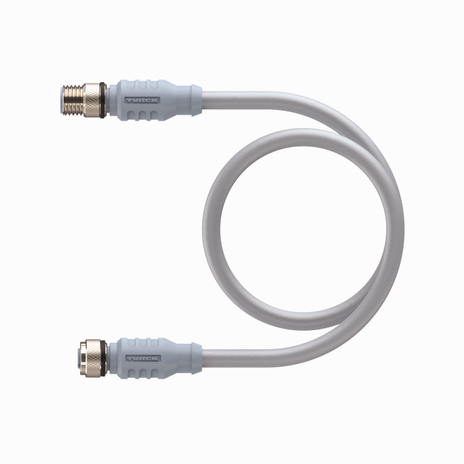

Turck RSC RKC 572-2M
SKU: CS540881MPN: RSC RKC 572-2MAlternate Part #: U0323UPC/EAN: 4047101035049
U0323 - CORD,M12EUROFAST
$44.91
Unit6 in stock
Product Details
Cable for DeviceNet and CANopen
Extension Cable
- M12 male connector, straight, A-coded
- M12 female connector, straight, A-coded
- M12, Male, Straight, 5-pin, A-Code
- M12, Female, Straight, 5-pin, A-Code
- Shielded Twisted Pair
- Fieldbus Technology Cable
- fieldbus type: DeviceNet™, Gray PVC jacket, shielded, 2STPX22 AWG
- Sunlight Resistant
- Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
Attributes
| Application | Data |
| Approvals | FM Div.2, CSA PA, UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
| Cable Diameter | Ø 7.24 mm |
| Cable Jacket | PVC, Gray |

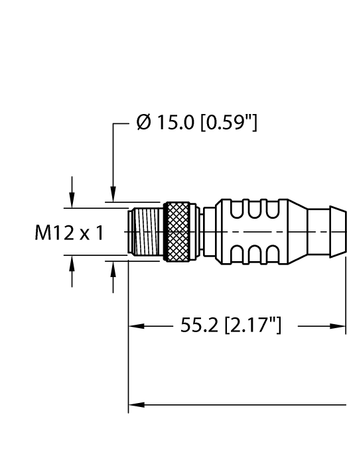

| Connector A | Male, M12 × 1, Straight, A-code |

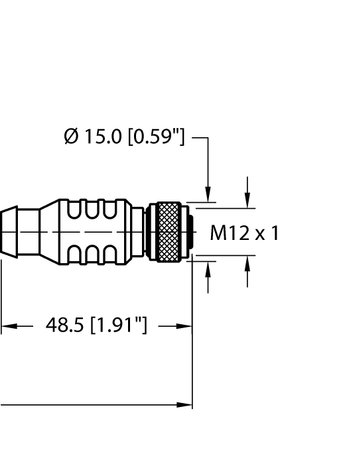

| Connector B | Female, M12 × 1, Straight, A-code |
| Connector Body | Plastic, TPU, Blue gray |
| Coupling Nut | Brass, CuZn, Nickel-plated |
| Current | 4 A |
| Customs Tariff Number | 85444290900.0000 |
| Design | Double-ended |
| Fieldbus Protocol | DeviceNet |
| Number Of Contacts | 5 |
| Protection Class When Coupled | IP68, IP69K |
| Special Feature | Shielded |
| Voltage | 250 V |
Specifications
| SKU | CS540881 |
|---|---|
| MPN | RSC RKC 572-2M |
| Alternate Part # | U0323 |
| UPC/EAN | 4047101035049 |
