Turck EKRB-ESRB-A5.500-HUA6-2
SKU: CS5390047MPN: EKRB-ESRB-A5.500-HUA6-2Alternate Part #: 100038126
$62.46
UnitAvailable on backorder
Product Details

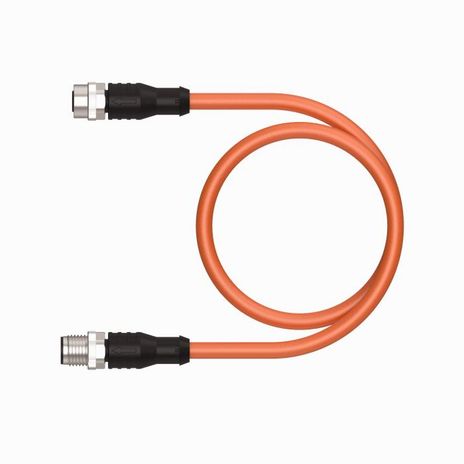

Actuator and Sensor Cordset
Extension Cable
- M12, Female, Straight, 5-pin
- M12, Male, Straight, 5-pin
- Halogen Free Cable/Low Smoke Cable
- Orange TPU jacket, 5 x 0.34 mm² (similar to 22 AWG)
- -50 Cold Bend Rating
- Flame Ratings: UL1581, FT2
Attributes
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
| Cable Diameter | Ø 5.5 mm |
| Cable Jacket | TPU, Orange |
| Connector Body | Plastic, TPU, Black |
| Coupling Nut | Brass, CuZn, Nickel-plated |
| Current | 4 A |
| Design | Double-ended |
| Ecl Ss Code V5 1 4 | 27250107 -/- Connection cable sensor-actuator |
| Number Of Conductors | 5.0000 |
| Number Of Contacts | 5 |
| Protection Class When Coupled | IP67, IP68, IP69, IP69K |
Specifications
| SKU | CS5390047 |
|---|---|
| MPN | EKRB-ESRB-A5.500-HUA6-2 |
| Alternate Part # | 100038126 |
