Watts 0556002
¾ LF LL100XL 150/210
Documents
- Watts 0068720, 0121341, 0121342, 0121344, 0121346, 0121348, 0121349, 0121353, 0121355, 0121357, 0124180, 0556000, 0556001, 0556002, 0556003 Data Sheet
- Watts 0002140, 0002210, 0002220, 0002268, 0004431, 0004434, 0004494, 0004497, 0063069, 0063072, 0063093, 0063098, 0064014, 0064016, 0066079 Installation Instructions
Product Details
Note: Model LL100XL: Extra extended inlet model. Suitable for water heaters with up to 2-½” (63.5mm) of insulation

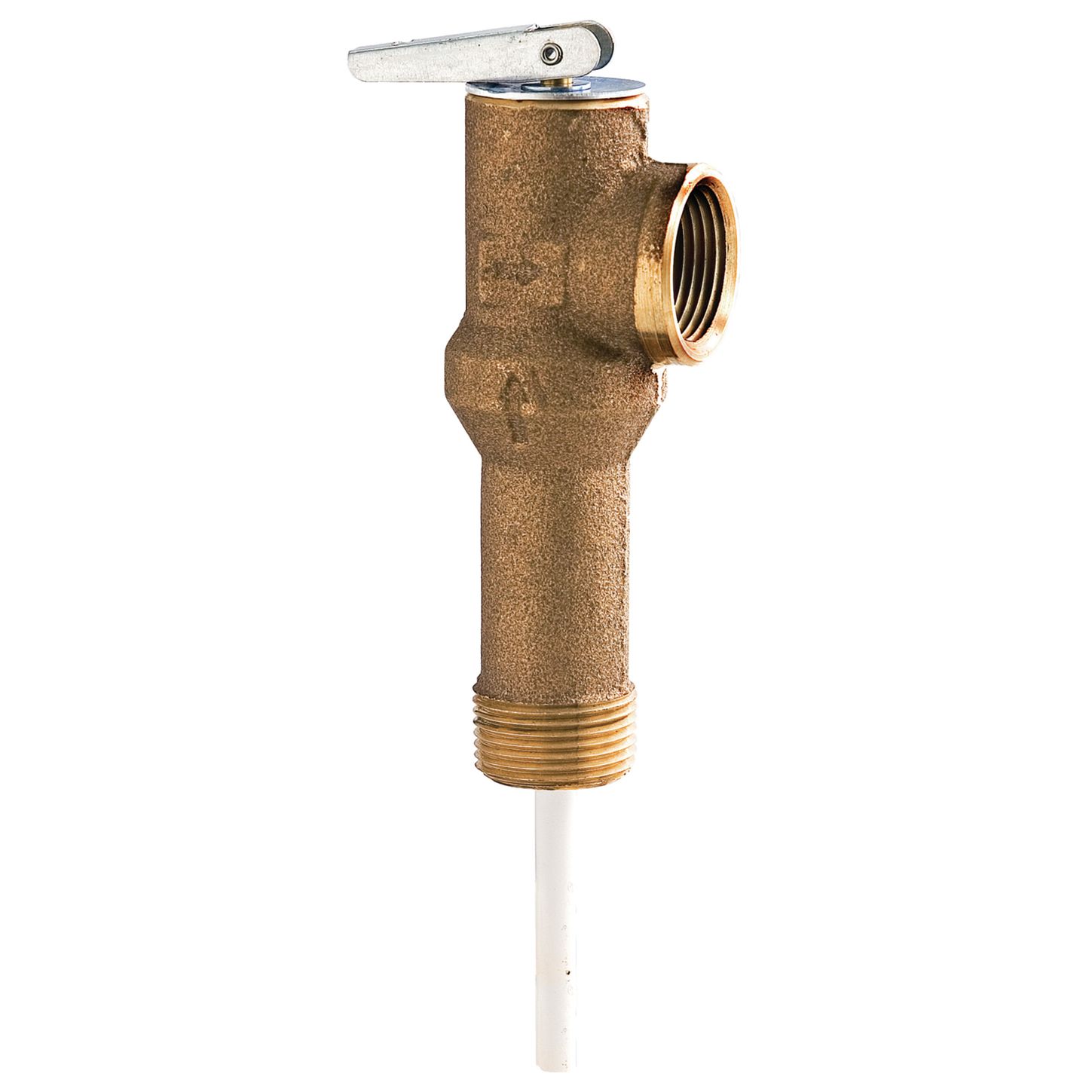

LFLL100XL Lead Free Extended Shank Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature an extended shank for installation on water heaters with extra thick insulation as well as a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Series SL100XL, L100XL, LL100XL and LLL100XL are ASME rated and CSA listed.
Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bars), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bars).
Specifications
| SKU | CS5359590 |
|---|---|
| MPN | 0556002 |
| UPC/EAN | 098268432374 |
